| How to order | |||
| SPC10N L B6 - M8M ① ② ③ ④ | |||
| ① Model | ② Vacuum port direction | ③ Vacuum port connection | ④ Mounting thread |
| SPC15N | Nil - Vertical L - Lateral | B6 -Pagoda fittingφ6hose | M4F - M4Female thread M6F - M6Female thread M8M -M8×1Male thread M0M -M10×1Male thread |
| Selection | |||||
| Model | Vacuum port connection | M4F | M6F | M8M | M10M |
| SPA10-20 | B6 | - | - | ● | - |
| LB6 | ● | - | - | - | |
| B6 | - | - | - | ● | |
| LB6 | - | ● | - | - | |
◇Note: "●"- standard, in stock. "—"- unavailable.

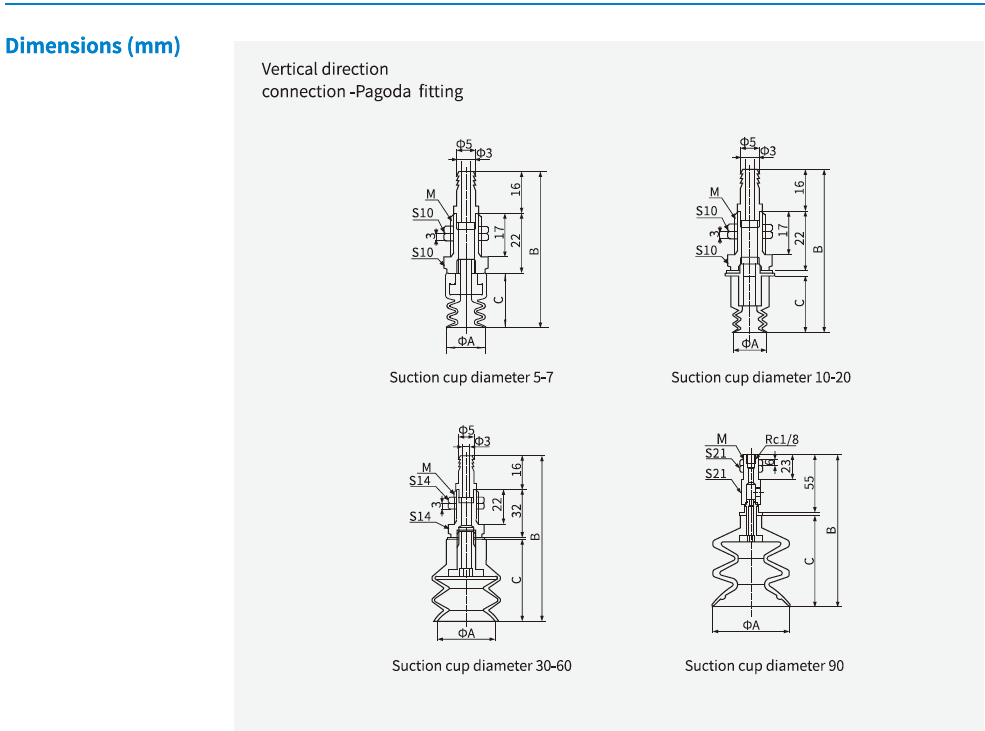

| Model/Size | A | B | C | M |
| SPC5-B6-M8M | 5.0 | 47.5 | 9.5 | M8×1 |
| SPC7-B6-M8M | 7.0 | 48.0 | 10.0 | M8×1 |
| SPC10-B6-M8M | 10.0 | 56.2 | 15.0 | M8×1 |
| SPC15-B6-M8M | 15.2 | 64.0 | 22.8 | M8×1 |
| SPC18-B6-M8M | 18.6 | 64.2 | 23.0 | M8×1 |
| SPC20-B6-M8M | 20.6 | 64.2 | 23.0 | M8×1 |
| SPC30-B6-M10M | 32.0 | 86.8 | 37.5 | M10×1 |
| SPC40-B6-M10M | 42.0 | 95.3 | 46.0 | M10×1 |
| SPC60-B6-M10M | 62.0 | 104.3 | 55.0 | M10×1 |
| SPC90-R1-M16M | 88.0 | 144.8 | 87.5 | M16×1.5 |

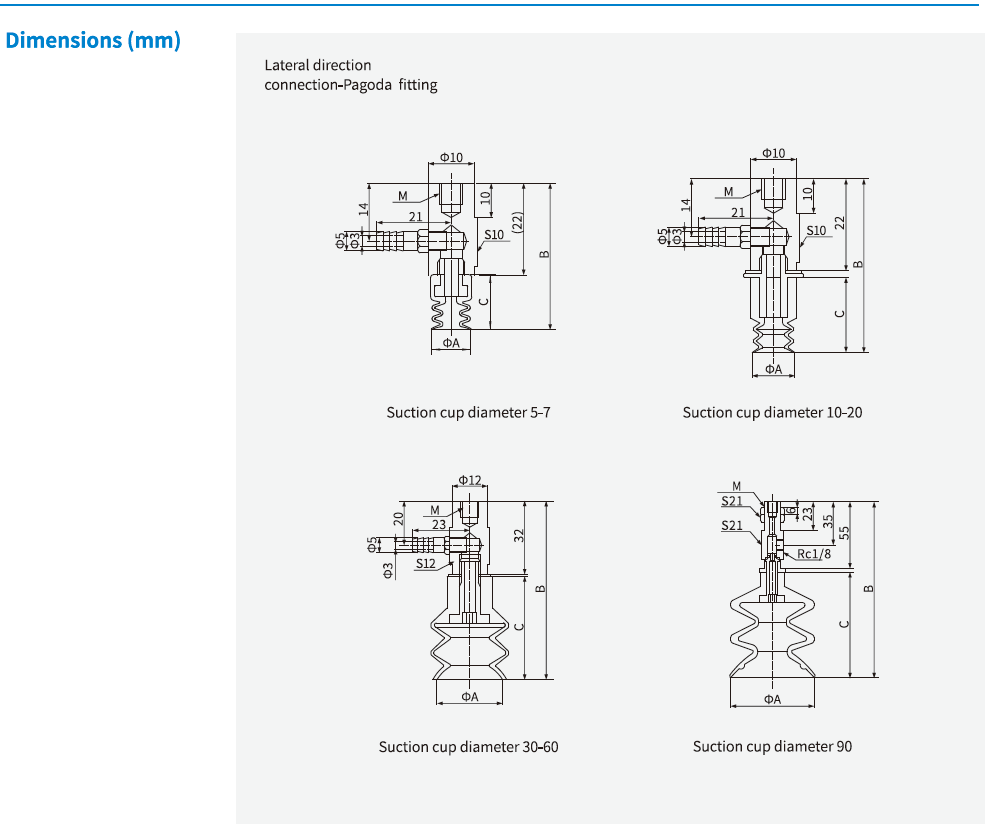

| Model/Size | A | B | C | M |
| SPC5-LB6-M4F | 5.0 | 31.5 | 9.5 | M4 Depth 6 |
| SPC7-LB6-M4F | 7.0 | 32.0 | 10.0 | M4 Depth 6 |
| SPC10-LB6-M4F | 10.0 | 40.2 | 15.0 | M4 Depth 6 |
| SPC15-LB6-M4F | 15.2 | 48.2 | 22.8 | M4 Depth 6 |
| SPC18-LB6-M4F | 18.6 | 48.2 | 23.0 | M4 Depth 6 |
| SPC20-LB6-M4F | 20.6 | 42.5 | 23.0 | M4 Depth 6 |
| SPC30-LB6-M6F | 32.0 | 70.8 | 37.5 | M6 Depth 8 |
| SPC40-LB6-M6F | 42.0 | 79.3 | 46.0 | M6 Depth 8 |
| SPC60-LB6-M6F | 62.0 | 88.3 | 55.0 | M6 Depth 8 |
| SPC90-LR1-M16M | 88.0 | 144.8 | 87.5 | M16×1.5 |
