| How to order | |||
| SPJ10N L B6 - M8M ① ② ③ ④ | |||
| ① Model | ② Vacuum port direction | ③ Vacuum port connection | ④ Mounting thread |
| SPJ10N | Nil - Vertical L - Lateral | R1 -G1/8Female thread B6 -Pagoda fitting φ6hose | M4F - M4Female thread M6F - M6Female thread M8F - M8Female thread M8M - M8×1Male thread M9M - M9×1Male thread M10M - M10×1Male thread M16M - M16×1.5Male thread |
| Selection | ||||
| Model | Vacuum port connection | Mounting thread | ||
| SPJ6-8 | B6 | M9M | ||
| LB6 | M4F | |||
| SPJ10-20 | B6 | M8M | ||
| LB6 | M6F | |||
| SPJ30-50 | B6 | M10M | ||
| LB6 | M6F | |||
| SPJ60-80 | R1 | M16M | ||
| LR1 | M8F | |||

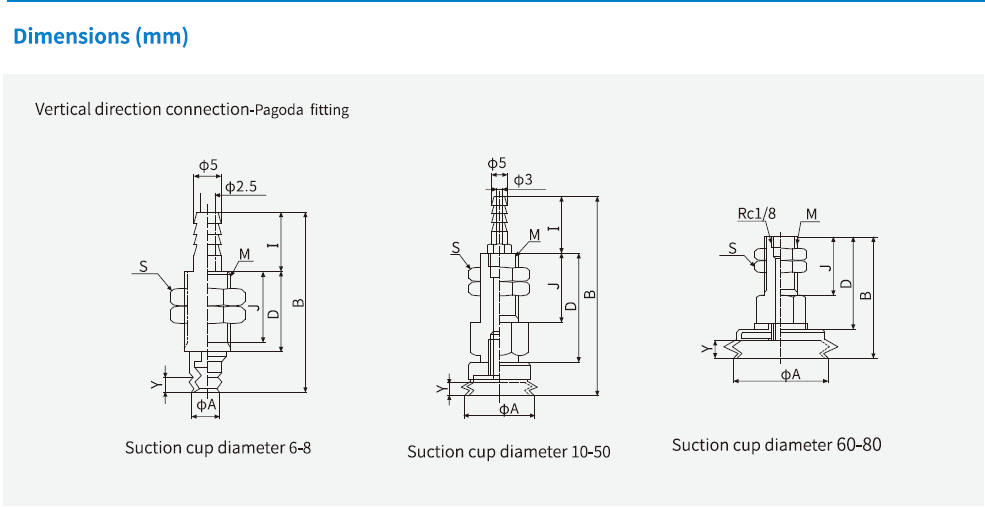

| Model/Size | A | B | D | I | J | M | Y | S |
| SPJ6-B6-M9M | 6.0 | 33.0 | 14.0 | 10 | 11 | M9×1 | 4.2 | 12 |
| SPJ8-B6-M9M | 8.0 | 33.0 | 14.0 | 10 | 11 | M9×1 | 4.0 | 12 |
| SPJ10-B6-M8M | 10.0 | 47.5 | 22.0 | 16 | 17 | M8×1 | 3.0 | 12 |
| SPJ15-B6-M8M | 15.0 | 49.0 | 22.0 | 16 | 17 | M8×1 | 3.3 | 12 |
| SPJ20-B6-M8M | 20.0 | 51.0 | 22.0 | 16 | 17 | M8×1 | 5.5 | 12 |
| SPJ25-B6-M10M | 25.0 | 63.5 | 32.0 | 16 | 22 | M10×1 | 6.5 | 14 |
| SPJ30-B6-M10M | 30.0 | 66.0 | 32.0 | 16 | 22 | M10×1 | 7.0 | 14 |
| SPJ35-B6-M10M | 35.0 | 66.0 | 32.0 | 16 | 22 | M10×1 | 7.0 | 14 |
| SPJ40-B6-M10M | 40.0 | 66.0 | 32.0 | 16 | 22 | M10×1 | 7.2 | 14 |
| SPJ50-B6-M10M | 50.0 | 68.0 | 32.0 | 16 | 22 | M10×1 | 9.0 | 14 |
| SPJ60-R1-M16M | 60.0 | 62.0 | 42.0 | - | 23 | M16×1.5 | 8.0 | 21 |
| SPJ80-R1-M16M | 70.0 | 63.0 | 42.0 | - | 23 | M16×1.5 | 9.5 | 21 |
| SPJ95-R1-M16M | 80.0 | 63.0 | 42.0 | - | 23 | M16×1.5 | 9.5 | 21 |
| Model/Size | A | B | D | I | J | M | Y | S |
| SPJ6-LB6-M4F | 6.0 | 31.0 | 22.0 | 21 | 14 | M4 depth 6 | 4.2 | 10 |
| SPJ8-LB6-M4F | 8.0 | 31.0 | 22.0 | 21 | 14 | M4 depth 6 | 4.0 | 10 |
| SPJ10-LB6-M4F | 10.0 | 31.5 | 22.0 | 21 | 14 | M4 depth 6 | 3.0 | 10 |
| SPJ15-LB6-M4F | 15.0 | 33.0 | 22.0 | 21 | 14 | M4 depth 6 | 3.3 | 10 |
| SPJ20-LB6-M4F | 20.0 | 35.0 | 22.0 | 21 | 14 | M4 depth 6 | 5.5 | 10 |
| SPJ25-LB6-M6F | 25.0 | 47.5 | 32.0 | 23 | 20 | M6 depth 8 | 6.5 | 14 |
| SPJ30-LB6-M6F | 30.0 | 50.0 | 32.0 | 23 | 20 | M6 depth 8 | 7.0 | 14 |
| SPJ35-LB6-M6F | 35.0 | 50.0 | 32.0 | 23 | 20 | M6 depth 8 | 7.0 | 14 |
| SPJ40-LB6-M6F | 40.0 | 50.0 | 32.0 | 23 | 20 | M6 depth 8 | 7.2 | 14 |
| SPJ50-LB6-M6F | 50.0 | 52.0 | 32.0 | 23 | 20 | M6 depth 8 | 9.0 | 14 |
| SPJ60-LR1-M8F | 60.0 | 62.0 | 42.0 | - | 28 | M8 depth 8 | 8.0 | 21 |
| SPJ70-LR1-M8F | 70.0 | 63.0 | 42.0 | - | 28 | M8 depth 8 | 9.5 | 21 |
| SPJ80-LR1-M8F | 80.0 | 63.0 | 42.0 | - | 28 | M8 depth 8 | 9.5 | 21 |
