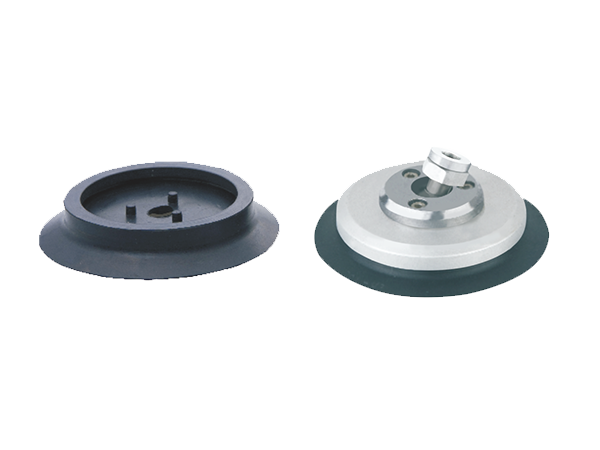

Features
◇ Standard flat suction cup ,suitable for handling workpiece with even surface.
◇ Large-area internal pattern can effectively increase the friction force during handling process.
◇ Swivel structure design, free to adjust the angle within a certain range, which makes the installation more flexible.
◇ Various sizes suitable for workpiece of different sizes.
Applications
◇ Steel plate
◇ Wooden plate
◇ Plywood
| SPU 15 N - M5M | |||||
| ① ② ③ ④ | |||||
| ① Series | ② Diameter | ④ Material & Hardness | ⑤ Connection thread | ||
| SPU | 10 - φ10mm 15 - φ15mm 20 - φ20mm 25 - φ25mm 30 - φ30mm 35 - φ35mm | 40 - φ40mm 50 - φ50mm 60 - φ60mm 70 - φ70mm 80 - φ80mm 100 - φ100mm | N - NBR WS - White silicone | Nil - Suction cup alone， no connection thread M5M - M5外螺纹G1M - G1/8外螺纹 G2M - G1/4外螺纹 | |
| Selection | |||
| Model | M5M | G1M | G2M |
| SPU10 - 35 | ● | - | - |
| SPU40 - 50 | - | ● | - |
| SPU60 - 100 | - | - | ● |
◇Note: "●"- standard, in stock."—"- unavailable.
| Technical parameters | |||
| Model | Pull-out force (N) | Inner volume (cm3) | Recommended hose dia.(mm) |
| SPU10 | 3.5 | <0.1 | 4.0 |
| SPU15 | 8.0 | 0.2 | 6.0 |
| SPU20 | 15.0 | 0.5 | 6.0 |
| SPU25 | 24.0 | 1.1 | 6.0 |
| SPU30 | 32.0 | 1.0 | 6.0 |
| SPU35 | 43.0 | 2.4 | 6.0 |
| SPU40 | 60.0 | 3.4 | 6.0 |
| SPU50 | 92.0 | 5.7 | 8.0 |
| SPU60 | 127.0 | 11.0 | 8.0 |
| SPU80 | 226.0 | 25.3 | 8.0 |
| SPU100 | 355.0 | 38.0 | 10.0 |
◇Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are figured out
without considering safety factor. The data may be different according to different workpiece surfaces.

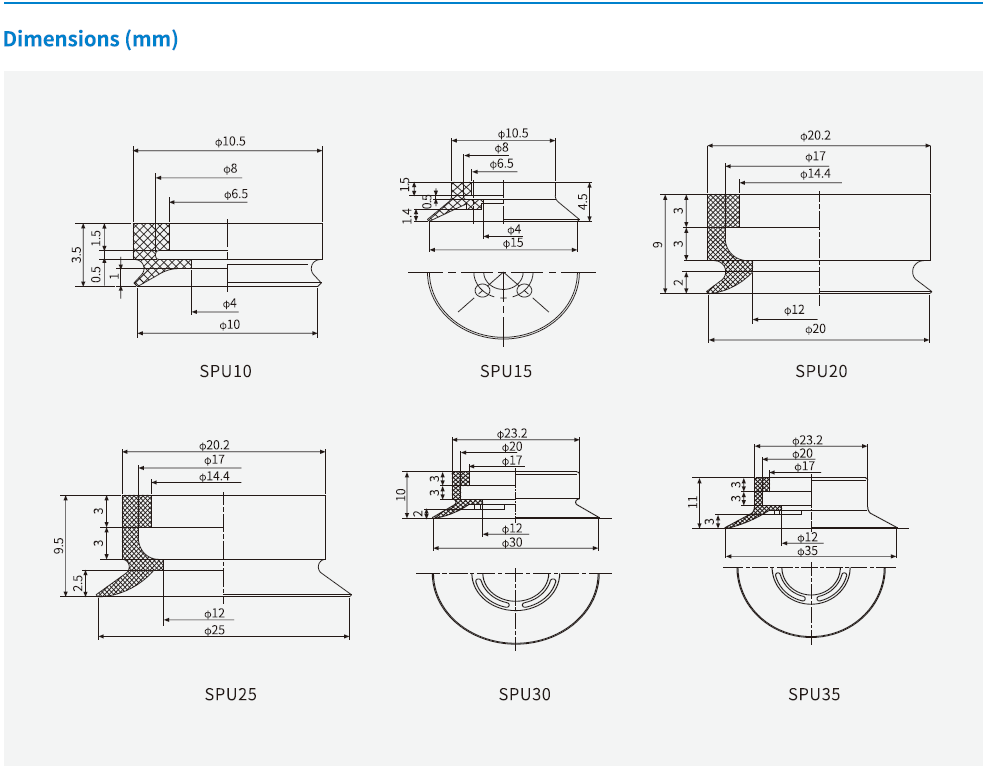

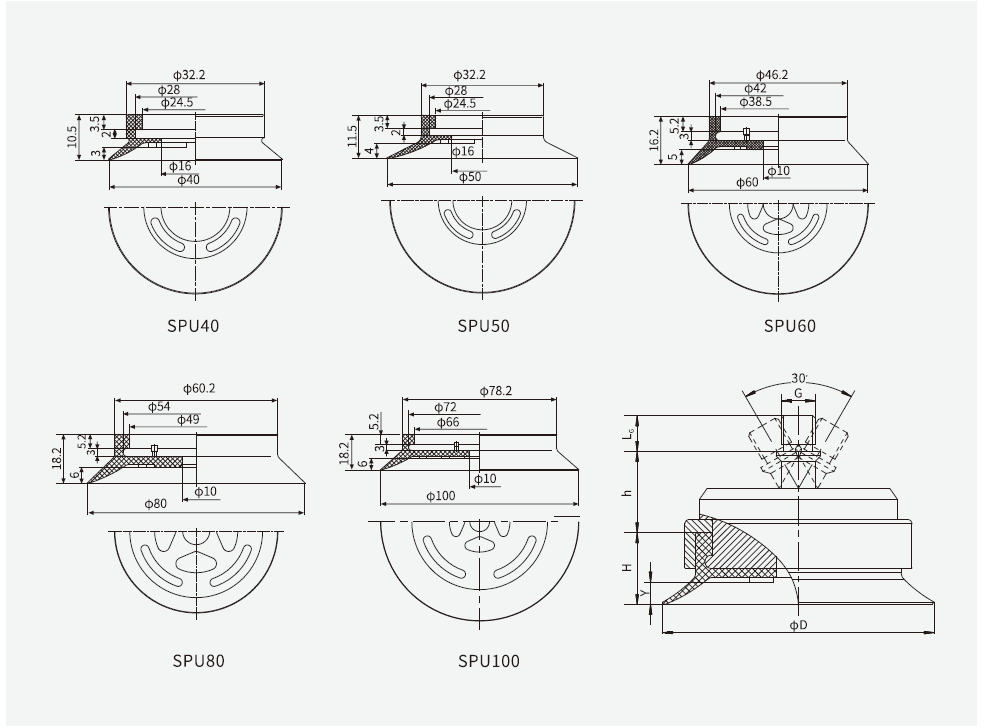

| Model/Size | D | H | Y | h | G | LG |
| SPU10-M5M | 10.6 | 3.5 | 1.0 | 9.0 | M5 | 5.0 |
| SPU15-M5M | 15.8 | 4.5 | 1.4 | 9.0 | M5 | 5.0 |
| SPU20-M5M | 20.6 | 9.0 | 2.0 | 13.0 | M5 | 5.0 |
| SPU25-M5M | 25.6 | 9.5 | 2.5 | 13.0 | M5 | 5.0 |
| SPU30-M5M | 30.6 | 10.0 | 2.0 | 13.0 | M5 | 5.0 |
| SPU35-M5M | 35.6 | 11.0 | 3.0 | 13.0 | M5 | 5.0 |
| SPU40-G1M | 40.6 | 10.5 | 3.0 | 18.0 | G1/8 | 6.5 |
| SPU50-G1M | 50.6 | 11.5 | 4.0 | 18.0 | G1/8 | 6.5 |
| SPU60-G2M | 61.0 | 16.2 | 5.0 | 22.0 | G1/4 | 9.0 |
| SPU80-G2M | 81.0 | 18.2 | 6.0 | 22.0 | G1/4 | 9.0 |
| SPU100-G2M | 101.2 | 18.2 | 6.0 | 22.0 | G1/4 | 9.0 |
