Features

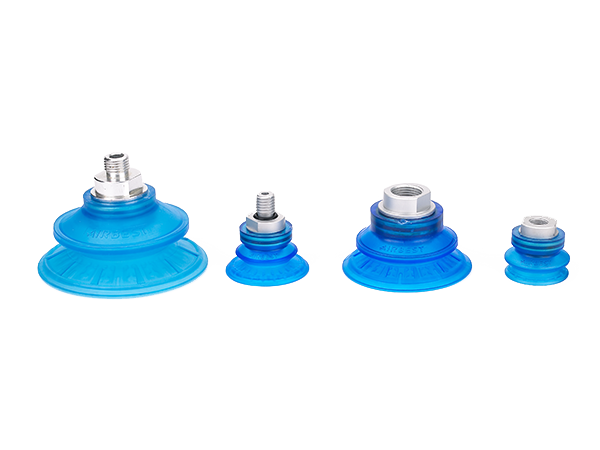

◇ 1.5 bellows. It has good sealing performance for workpiece with uneven surface and height compensation during handling.
◇ PU material, good wear resistance.
◇ Various sizes for option.
Applications
◇ Automative steel plate
◇ Plywood
◇ Stamping steel plate
| How to order | |||
| SBF 30 U -G2F ① ② ③ ④ | |||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread |
| SBF | 30 - φ30mm 40 - φ40mm 50 - φ50mm 60 - φ60mm 80 - φ80mm 100 - φ100mm | U - PU | G2F - G1/4 Female thread G2M - G1/4 Male thread G3F - G3/8 Female thread M10M - M10 Male thread RA - Rectangular adapter |
| Selection | |||||
| Model/ Connection thread | G2F | G2M | G3F | M10M | RA |
| SBF30 - 40 | ● | ○ | - | ○ | ○ |
| SBF50 - 100 | - | ○ | ● | ○ | ○ |
◇Note: "●"- standard, in stock. "○"-selective, can be achieved in other way(e.g.adapter)."—"-unavailable.
| Technical parameters | |||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) | Weight (g) |
| SBF30 | 33 | 5.5 | 30 | 6 | 18.5 |
| SBF40 | 60 | 7 | 45 | 6 | 20 |
| SBF50 | 103 | 11.5 | 50 | 8 | 40 |
| SBF60 | 145 | 22 | 55 | 8 | 45 |
| SBF80 | 235 | 60 | 72 | 10 | 75 |
| SBF100 | 380 | 98 | 97 | 10 | 118 |
◇Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety
factor. The data may be different according to different workpiece surfaces.
| Model/ Size | D | H | G | LG | h | S( Width across flats) | Y |
| SBF30-G2F | 32 | 28 | G1/4 | 10 | - | 17 | 7 |
| SBF30-G2M | 32 | 28 | G1/4 | 12 | 13.5 | 17 | 7 |
| SBF30-M10M | 32 | 28 | M10 | 12 | 13.5 | 17 | 7 |
| SBF30-RA | 32 | 28 | □32 | 4.7 | - | - | 7 |
| SBF40-G2F | 42 | 29 | G1/4 | 10 | - | 17 | 9 |
| SBF40-G2M | 42 | 29 | G1/4 | 12 | 13.5 | 17 | 9 |
| SBF40-M10M | 42 | 29 | M10 | 12 | 13.5 | 17 | 9 |
| SBF40-RA | 42 | 29 | □32 | 4.7 | - | - | 9 |
| SBF50-G3F | 51.5 | 37 | G3/8 | 13 | - | 22 | 12.5 |
| SBF50-G2M | 51.5 | 37 | G1/4 | 12 | 13.5 | 22 | 12.5 |
| SBF50-M10M | 51.5 | 37 | M10 | 12 | 13.5 | 22 | 12.5 |
| SBF50-RA | 51.5 | 37 | □32 | 4.7 | - | - | 12.5 |
| SBF60-G3F | 64 | 41.5 | G3/8 | 13 | - | 22 | 15 |
| SBF60-G2M | 64 | 41.5 | G1/4 | 12 | 13.5 | 22 | 15 |
| SBF60-M10M | 64 | 41.5 | M10 | 12 | 13.5 | 22 | 15 |
| SBF60-RA | 64 | 41.5 | □32 | 4.7 | - | - | 15 |
| SBF80-G3F | 84 | 49.5 | G3/8 | 13 | - | 22 | 23 |
| SBF80-G2M | 84 | 49.5 | G1/4 | 12 | 13.5 | 22 | 23 |
| SBF80-M10M | 84 | 49.5 | M10 | 12 | 13.5 | 22 | 23 |
| SBF80-RA | 84 | 49.5 | □32 | 4.7 | - | - | 23 |
| SBF100-G3F | 103 | 55 | G3/8 | 13 | - | 22 | 22 |
| SBF100-M10M | 103 | 55 | G1/4 | 12 | 13.5 | 22 | 22 |
| SBF100-G2M | 103 | 55 | M10 | 12 | 13.5 | 22 | 22 |
| SBF100-RA | 103 | 55 | □32 | 4.7 | - | - | 22 |
