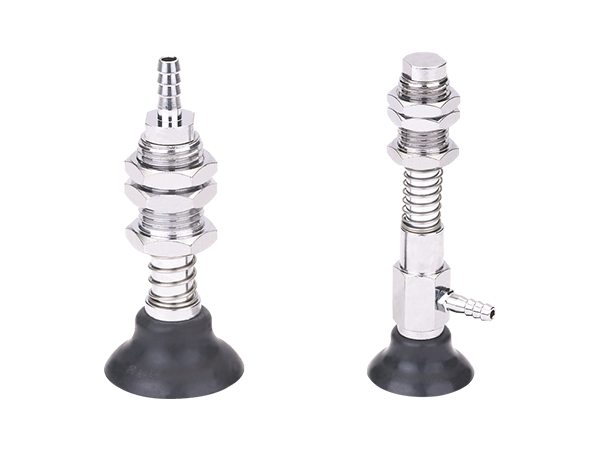

| How to order | ||||
| SPF10N -F E 10 LB6 -M11 ① ② ③ ④ ⑤ ⑥ | ||||
| ① Model | ② Level compensator type | ③ Buffer style | ④ Buffer stroke | |
| SPF10N | F -PSPF Series | E -External spring | 2 3 4 5 6 10 15 30 | |
| ⑤ Vacuum port connection | ⑥ Mounting thread | |
| B4 - Vertical，One touch fittingφ4hose B6 - Vertical，One touch fittingφ6hose LB4 - Lateral，One touch fittingφ4hose LB6 - Lateral, One touch fittingφ6hose LR1 - Lateral，Rc1/8Female thread | M5 - M5×0.5 M9 - M9×1 M11 - M11×1 M14 - M14×1 M16 - M16×1.5 | |
| Selection | |||||
| Model | Buffer stroke | Vacuum port connection | Mounting thread | ||
| SPF2-3.5 | 2.5 | 5 | B4 | LB4 | M5 |
| SPF5-8 | 3 | 10 | B6 | LB6 | M9 |
| SPF10-15 | 4 | 10 | B6 | LB6 | M11 |
| SPF20-50 | 6 | 15 | B6 | LB6 | M14 |
| SPF60-95 | 10 | 30 | - | LR1 | M16 |

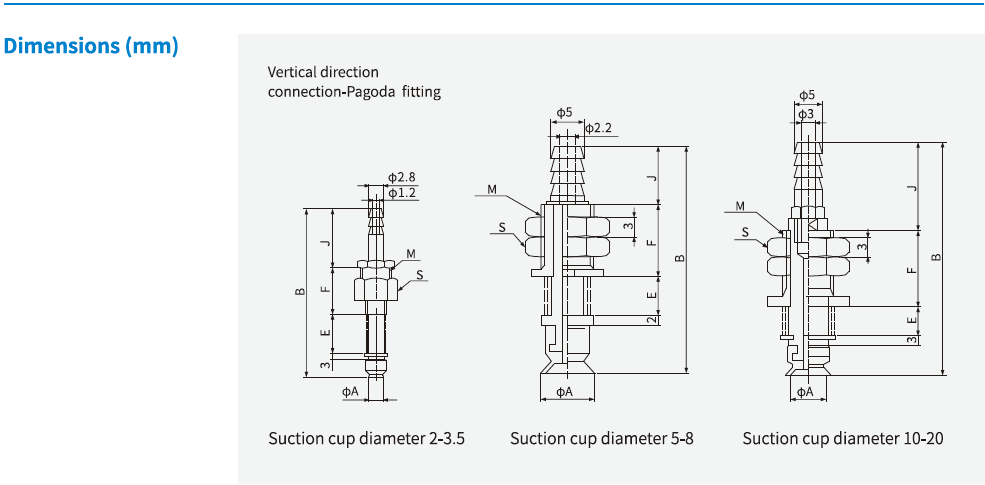

| Model/Size | A | B | E | F | J | M | S | Buffer stroke |
| SPF2-FE2B4-M5 | 2.0 | 28.5 | 5 | 8 | 8.5 | M5×0.5 | 7 | 2.5 |
| SPF2-FE5B4-M5 | 2.0 | 33.5 | 10 | 8 | 8.5 | M5×0.5 | 7 | 5.0 |
| SPF3.5-FE2B4-M5 | 3.5 | 28.5 | 5 | 8 | 8.5 | M5×0.5 | 7 | 2.5 |
| SPF3.5-FE5B4-M5 | 3.5 | 33.5 | 10 | 8 | 8.5 | M5×0.5 | 7 | 5.0 |
| SPF5-FE3B6-M9 | 5.0 | 37.5 | 6 | 13 | 10 | M9×1 | 12 | 3.0 |
| SPF5-FE10B6-M9 | 5.0 | 51.5 | 20 | 13 | 10 | M9×1 | 12 | 10.0 |
| SPF6-FE3B6-M9 | 6.0 | 37.5 | 6 | 13 | 10 | M9×1 | 12 | 3.0 |
| SPF6-FE10B6-M9 | 6.0 | 51.5 | 20 | 13 | 10 | M9×1 | 12 | 10.0 |
| SPF8-FE3B6-M9 | 8.0 | 38.0 | 6 | 13 | 10 | M9×1 | 12 | 3.0 |
| SPF8-FE10B6-M9 | 8.0 | 52.0 | 20 | 13 | 10 | M9×1 | 12 | 10.0 |
| SPF10-FE4B6-M11 | 10.0 | 53.5 | 8 | 19 | 16 | M11×1 | 14 | 4.0 |
| SPF10-FE10B6-M11 | 10.0 | 65.5 | 20 | 19 | 16 | M11×1 | 14 | 10.0 |
| SPF15-FE4B6-M11 | 15.0 | 54.0 | 8 | 19 | 16 | M11×1 | 14 | 4.0 |
| SPF15-FE10B6-M11 | 15.0 | 66.0 | 20 | 19 | 16 | M11×1 | 14 | 10.0 |
| SPF20-FE4B6-M11 | 20.0 | 56.0 | 8 | 19 | 16 | M11×1 | 14 | 4.0 |
| SPF20-FE10B6-M11 | 20.0 | 68.0 | 20 | 19 | 16 | M11×1 | 14 | 10.0 |

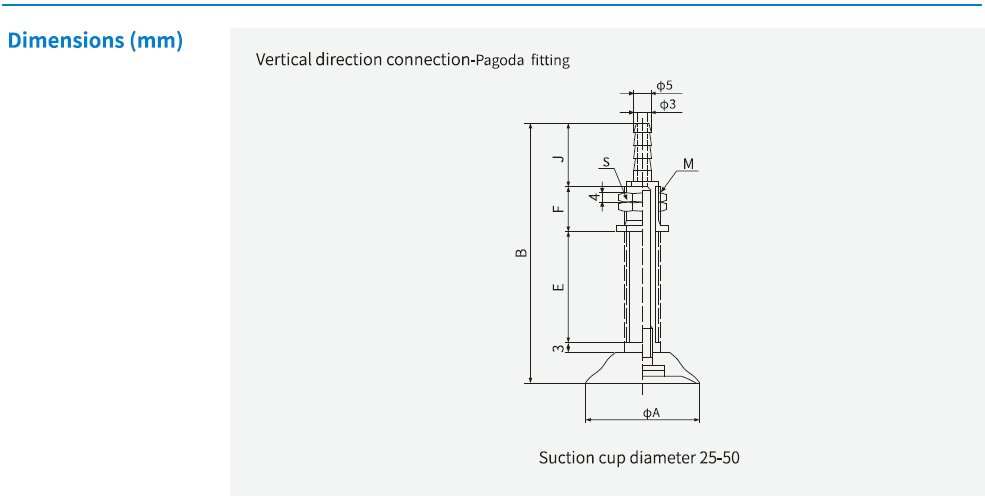

| Model/Size | A | B | E | F | J | M | S | Buffer stroke |
| SPF25-FE6B6-M14 | 25.0 | 71.0 | 13 | 24 | 17 | M14×1 | 17 | 6.0 |
| SPF25-FE15B6-M14 | 25.0 | 88.0 | 30 | 24 | 17 | M14×1 | 17 | 15.0 |
| SPF30-FE6B6-M14 | 30.0 | 69.0 | 13 | 24 | 17 | M14×1 | 17 | 6.0 |
| SPF30-FE15B6-M14 | 30.0 | 86.0 | 30 | 24 | 17 | M14×1 | 17 | 15.0 |
| SPF35-FE6B6-M14 | 35.0 | 71.0 | 13 | 24 | 17 | M14×1 | 17 | 6.0 |
| SPF35-FE15B6-M14 | 35.0 | 88.0 | 30 | 24 | 17 | M14×1 | 17 | 15.0 |
| SPF40-FE6B6-M14 | 40.0 | 71.0 | 13 | 24 | 17 | M14×1 | 17 | 6.0 |
| SPF40-FE15B6-M14 | 40.0 | 88.0 | 30 | 24 | 17 | M14×1 | 17 | 15.0 |
| SPF50-FE6B6-M14 | 50.0 | 72.0 | 13 | 24 | 17 | M14×1 | 17 | 6.0 |
| SPF50-FE15B6-M14 | 50.0 | 89.0 | 30 | 24 | 17 | M14×1 | 17 | 16.0 |

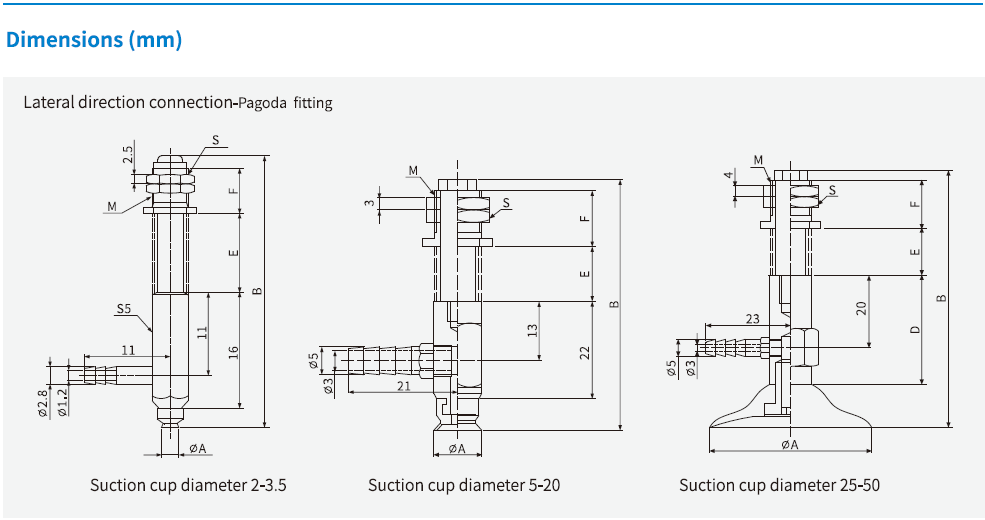

| Model/Size | A | B | E | F | M | S | Buffer stroke |
| SPF2-FE2LB4-M5 | 2.0 | 35.5 | 5 | 8 | M5×0.5 | 7 | 2.5 |
| SPF2-FE5LB4-M5 | 2.0 | 40.5 | 10 | 8 | M5×0.5 | 7 | 5.0 |
| SPF3.5-FE2LB4-M5 | 3.5 | 35.5 | 5 | 8 | M5×0.5 | 7 | 2.5 |
| SPF3.5-FE5LB4-M5 | 3.5 | 40.5 | 10 | 8 | M5×0.5 | 7 | 5.0 |
| SPF5-FE3LB6-M9 | 5.0 | 50.5 | 6 | 13 | M9×1 | 12 | 3.0 |
| SPF5-FE10LB6-M9 | 5.0 | 64.5 | 20 | 13 | M9×1 | 12 | 10.0 |
| SPF6-FE3LB6-M9 | 6.0 | 50.5 | 6 | 13 | M9×1 | 12 | 3.0 |
| SPF6-FE10LB6-M9 | 6.0 | 64.5 | 20 | 13 | M9×1 | 12 | 10.0 |
| SPF8-FE3LB6-M9 | 8.0 | 51.0 | 6 | 13 | M9×1 | 12 | 3.0 |
| SPF8-FE10LB6-M9 | 8.0 | 65.0 | 20 | 13 | M9×1 | 12 | 10.0 |
| SPF10-FE4LB6-M11 | 10.0 | 59.5 | 8 | 19 | M11×1 | 14 | 4.0 |
| SPF10-FE10LB6-M11 | 10.0 | 71.5 | 20 | 19 | M11×1 | 14 | 10.0 |
| SPF15-FE4LB6-M11 | 15.0 | 60.0 | 8 | 19 | M11×1 | 14 | 4.0 |
| SPF15-FE10LB6-M11 | 15.0 | 72.0 | 20 | 19 | M11×1 | 14 | 10.0 |
| SPF20-FE4LB6-M11 | 20.0 | 62.0 | 8 | 19 | M11×1 | 14 | 4.0 |
| SPF20-FE10LB6-M11 | 20.0 | 74.0 | 20 | 19 | M11×1 | 14 | 10.0 |
| SPF25-FE6LB6-M14 | 25.0 | 87.0 | 13 | 24 | M14×1 | 17 | 6.0 |
| SPF25-FE15LB6-M14 | 25.0 | 104.0 | 30 | 24 | M14×1 | 17 | 15.0 |
| SPF30-FE6LB6-M14 | 30.0 | 85.0 | 13 | 24 | M14×1 | 17 | 6.0 |
| SPF30-FE15LB6-M14 | 30.0 | 102.0 | 30 | 24 | M14×1 | 17 | 15.0 |
| SPF35-FE6LB6-M14 | 35.0 | 87.0 | 13 | 24 | M14×1 | 17 | 6.0 |
| SPF35-FE15LB6-M14 | 35.0 | 104.0 | 30 | 24 | M14×1 | 17 | 15.0 |
| SPF40-FE6LB6-M14 | 40.0 | 87.0 | 13 | 24 | M14×1 | 17 | 6.0 |
| SPF40-FE15LB6-M14 | 40.0 | 104.0 | 30 | 24 | M14×1 | 17 | 15.0 |
| SPF50-FE6LB6-M14 | 50.0 | 88.0 | 13 | 24 | M14×1 | 17 | 6.0 |
| SPF50-FE15LB6-M14 | 50.0 | 105.0 | 30 | 24 | M14×1 | 17 | 15.0 |

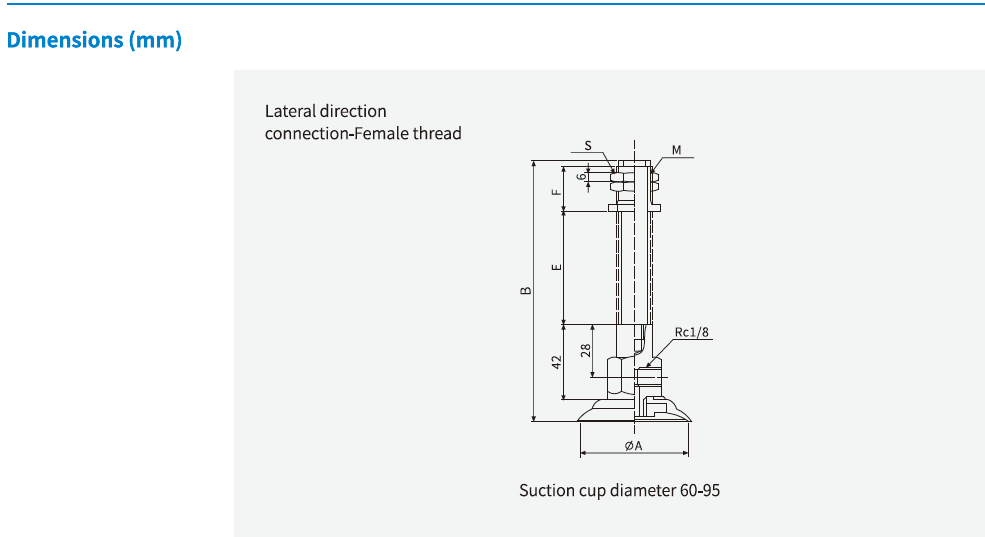

| Model/Size | A | B | E | F | M | S | Buffer stroke |
| SPF60-FE10LR1-M16 | 60.0 | 110.0 | 20 | 28 | M16×1.5 | 21 | 10 |
| SPF60-FE30LR1-M16 | 60.0 | 150.0 | 60 | 28 | M16×1.5 | 21 | 30 |
| SPF80-FE10LR1-M16 | 80.0 | 112.0 | 20 | 28 | M16×1.5 | 21 | 10 |
| SPF80-FE30LR1-M16 | 80.0 | 152.0 | 60 | 28 | M16×1.5 | 21 | 30 |
| SPF95-FE10LR1-M16 | 95.0 | 112.5 | 20 | 28 | M16×1.5 | 21 | 10 |
| SPF95-FE30LR1-M16 | 95.0 | 152.5 | 60 | 28 | M16×1.5 | 21 | 30 |
