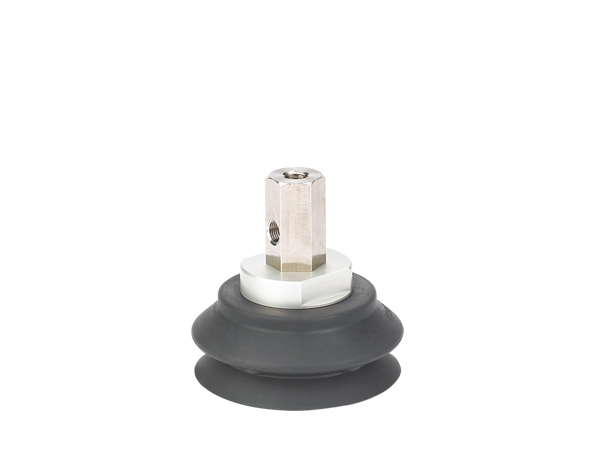

| How to order | ||
| SHB40N -LR1 -M10F ① ② ③ | ||
| ① Model | ② Vacuum port direction and connection thread | ③ Connection thread |
| SHB40N | Nil - Vertical,Female thread connection R1 - Vertical(Rc1/8),Male thread connection LR1 - Lateral(Rc1/8),Female thread connection | M10F - M10 Female thread M12F - M12 Female thread G2F - G1/4 Female thread G3F - G3/8 Female thread M14M - M14x1 Male thread M16M - M16x1.5 Male thread |

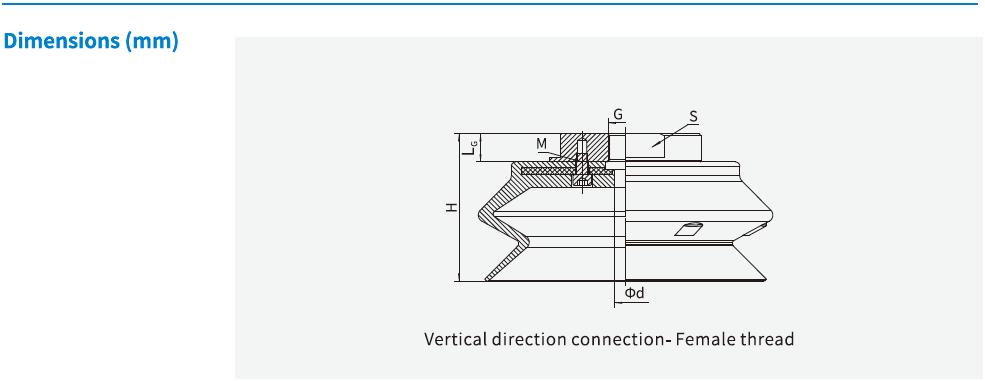

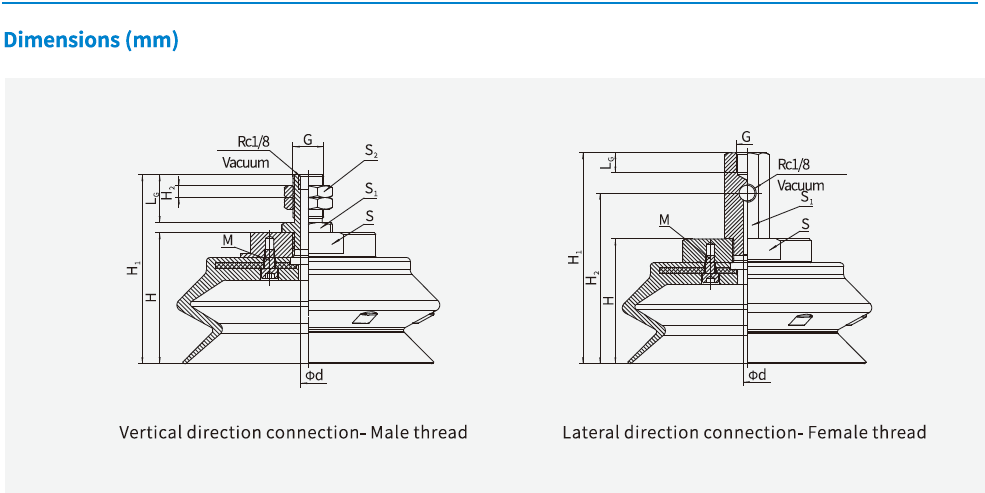

| Model/Size | d | H | G | M | LG | S |
| SHB40-G2F | 6.0 | 32.0 | G1/4 | 3-M3 | 11.5 | 24.0 |
| SHB40-M10F | 6.0 | 32.0 | M10×1.5 | 3-M3 | 11.5 | 24.0 |
| SHB50-G2F | 6.0 | 35.5 | G1/4 | 3-M3 | 11.5 | 24.0 |
| SHB50-M10F | 6.0 | 35.5 | M10×1.5 | 3-M3 | 11.5 | 24.0 |
| SHB63-G2F | 8.0 | 43.0 | G1/4 | 3-M4 | 11.5 | 37.0 |
| SHB63-M10F | 8.0 | 43.0 | M10×1.5 | 4-M4 | 11.5 | 37.0 |
| SHB80-G2F | 8.0 | 48.5 | M12×1.75 | 4-M4 | 11.5 | 37.0 |
| SHB80-M10F | 8.0 | 48.5 | G3/8 | 4-M4 | 11.5 | 37.0 |
| SHB100-M12F | 10.0 | 60.5 | M12×1.75 | 5-M5 | 13.0 | 60.0 |
| SHB100-G3F | 10.0 | 60.5 | G3/8 | 5-M5 | 13.0 | 60.0 |
| SHB125-M12F | 10.0 | 69.0 | G1/4 | 5-M5 | 13.0 | 60.0 |
| SHB125-G3F | 10.0 | 69.0 | M10×1.5 | 5-M5 | 13.0 | 60.0 |
| Model/Size | d | H | H1 | H2 | G | M | LG | S | S1 | S2 |
| SHB40-R1-M14M | 3.0 | 32.0 | 62.0 | 5.0 | M14×1 | 3-M3 | 25 | 24 | 19 | 19 |
| SHB50-R1-M14M | 3.0 | 35.5 | 65.5 | 5.0 | M14×1 | 3-M3 | 25 | 24 | 19 | 19 |
| SHB63-R1-M16M | 8.0 | 43.0 | 73.0 | 6.0 | M16×1.5 | 4-M4 | 25 | 37 | 24 | 22 |
| SHB80-R1-M16M | 8.0 | 48.5 | 78.5 | 6.0 | M16×1.5 | 4-M4 | 25 | 37 | 24 | 22 |
| SHB100-R1-M16M | 8.0 | 60.5 | 90.5 | 6.0 | M16×1.5 | 5-M5 | 25 | 60 | 24 | 22 |
| SHB125-R1-M16M | 8.0 | 69.0 | 99.0 | 6.0 | M16×1.5 | 5-M5 | 25 | 60 | 24 | 22 |
| SHB40-LR1-M10F | 3.0 | 32.0 | 69.0 | 47.0 | M10×1.5 | 3-M3 | 11 | 24 | 21 | - |
| SHB50-LR1-M10F | 3.0 | 35.5 | 72.5 | 50.5 | M10×1.5 | 3-M3 | 11 | 24 | 21 | - |
| SHB63-LR1-M10F | 4.0 | 43.0 | 80.0 | 58.0 | M10×1.5 | 4-M4 | 11 | 37 | 21 | - |
| SHB80-LR1-M10F | 4.0 | 48.5 | 85.5 | 63.5 | M10×1.5 | 4-M4 | 11 | 37 | 21 | - |
| SHB100-LR1-M10F | 4.0 | 60.5 | 97.5 | 75.5 | M10×1.5 | 5-M5 | 11 | 60 | 21 | - |
| SHB125-LR1-M10F | 4.0 | 69.0 | 106 | 84 | M10×1.5 | 5-M5 | 11 | 60 | 21 | - |
