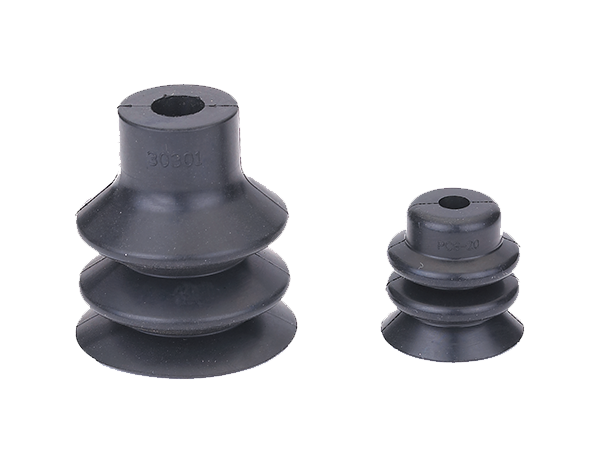

Features
◇ 2.5 bellows with long buffer stroke, suitable for handling workpiece with irregular surface.
◇ Suction cups with different materials are suitable for different workpieces.
◇ Various sizes, suitable for workpiece with different sizes.
Applications
◇ Carton box
◇ Molding plastic
| How to order | ||||
| SPC 15 N - M5M ① ② ③ ④ | ||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | |
| SPC | 5 -φ5mm 7 -φ7mm 10 -φ10mm 15 -φ15mm 18 -φ18mm 20 -φ20mm 30 -φ30mm 40 -φ40mm 60 -φ60mm 90 -φ90mm | N - NBR★ WS - White silicone★ CN - Conductive NBR CS - Conductive silicone E -EPDM | Nil - Suction cup alone， no connection thread M5M - M5 Male thread M8M - M8 Male thread G1M - G1/8 Male thread | |
| Selection | |||
| Model | M5M | M8M | G1M |
| SPC5 - 20 | ● | - | - |
| SPC30 - 60 | - | ● | - |
| SPC90 | - | - | ● |
◇Note: "●"- standard, in stock. "—"- unavailable.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) |
| SPC5 | 0.9 | <0.1 | 7.5 | 4.0 |
| SPC7 | 1.7 | <0.1 | 12.0 | 4.0 |
| SPC10 | 3.5 | 0.2 | 13.0 | 6.0 |
| SPC15 | 8.0 | 0.9 | 15.0 | 6.0 |
| SPC18 | 11.5 | 1.5 | 20.0 | 6.0 |
| SPC20 | 14.0 | 2.0 | 27.0 | 6.0 |
| SPC30 | 32.0 | 8.3 | 35 | 6.0 |
| SPC40 | 56.0 | 16.5 | 60 | 8.0 |
| SPC60 | 127.0 | 52 | 75 | 8.0 |
| SPC90 | 286.0 | 135 | 85 | 8.0 |
◇Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are figured out
without considering safety factor. The data may be different according to different workpiece surfaces.

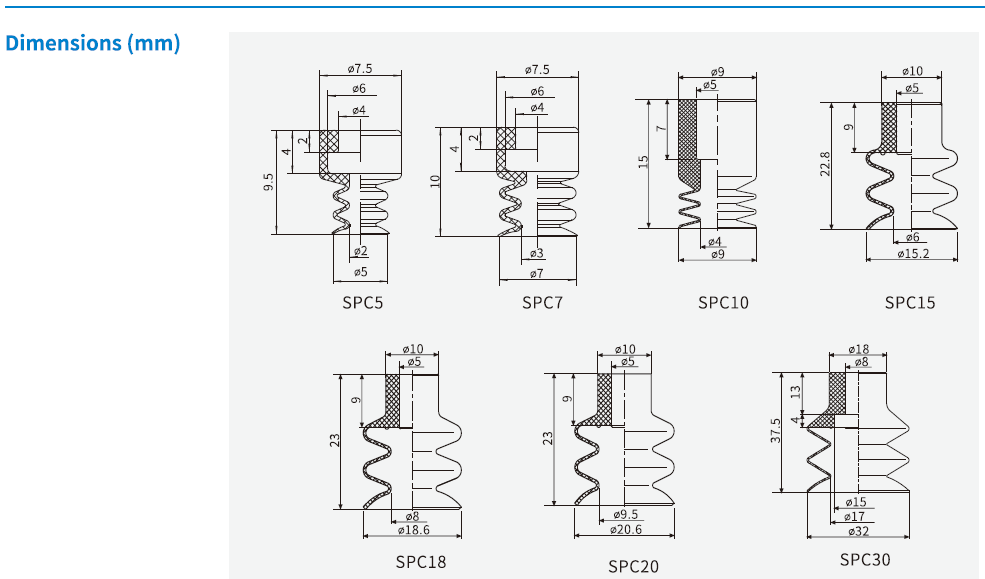

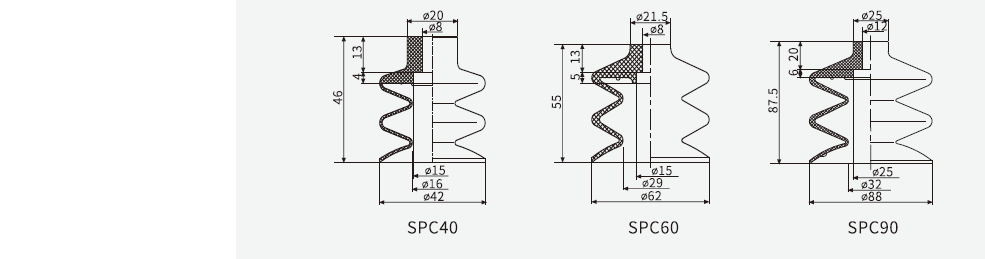

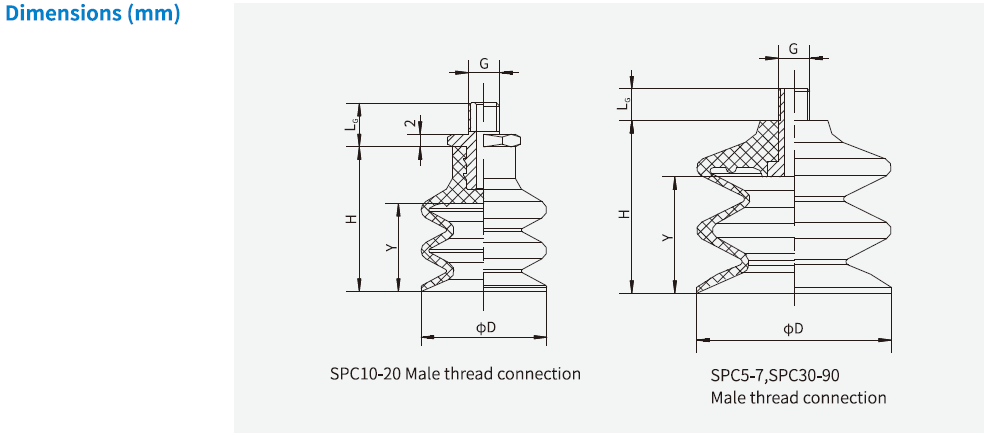

| Model/Size | D | H | Y | G | LG |
| SPC5-M5M | 5.0 | 9.5 | 4.0 | M5 | 5.0 |
| SPC7-M5M | 7.0 | 10.0 | 5.0 | M5 | 5.0 |
| SPC10-M5M | 10.0 | 15.0 | 6.0 | M5 | 5.0 |
| SPC15-M5M | 15.2 | 22.8 | 13.8 | M5 | 7.0 |
| SPC18-M5M | 18.6 | 23.0 | 14.0 | M5 | 7.0 |
| SPC20-M5M | 20.6 | 23.0 | 14.0 | M5 | 7.0 |
| SPC30-M8M | 32.0 | 37.5 | 20.5 | M8 | 6.5 |
| SPC40-M8M | 42.0 | 46.0 | 29.0 | M8 | 6.5 |
| SPC60-M8M | 62.0 | 55.0 | 37.0 | M8 | 6.5 |
| SPC90-G1M | 88.0 | 87.5 | 61.5 | G1/8 | 7.0 |
| Mounting parts | |||||
| Item | Model | Applicable suction cup | |||
| Fitting for suction cup | PJS-M5M-ST2 | SPC5、7 | |||
| PJS-M5M-SPC10 | SPC10 | ||||
| PJS-M5M-SPC20 | SPC15、18、20 | ||||
| PJS-M8M-ST6 | SPC30、40、60 | ||||
| PJS-G1M-ST8 | SPC90 | ||||
