| How to order | |||
| SPU30N L B6 - M10M ① ② ③ ④ | |||
| ① Model | ② Vacuum port direction | ③ Vacuum port connection | ④ Mounting thread |
| SPU30N | Nil - Vertical L - Lateral | R1 -G1/8Female thread B6 -Pagoda fittingφ6hose | M4F - M4 Female thread M6F - M6 Female thread M8F - M8×1.25 Female thread M8M - M8×1 Male thread M10M - M10×1 Male thread M14M - M14×1 Male thread M16M - M16×1.5 Male thread |
| Selection | ||
| Model | Vacuum port connection | Mounting thread |
| SPU10-15 | B6 | M8M |
| LB6 | M4F | |
| SPU20-35 | B6 | M10M |
| LB6 | M6F | |
| SPU40-50 | B6 | M14M |
| LB6 | M8F | |
| SPU60-100 | R1 | M16M |
| LR1 | M16M | |

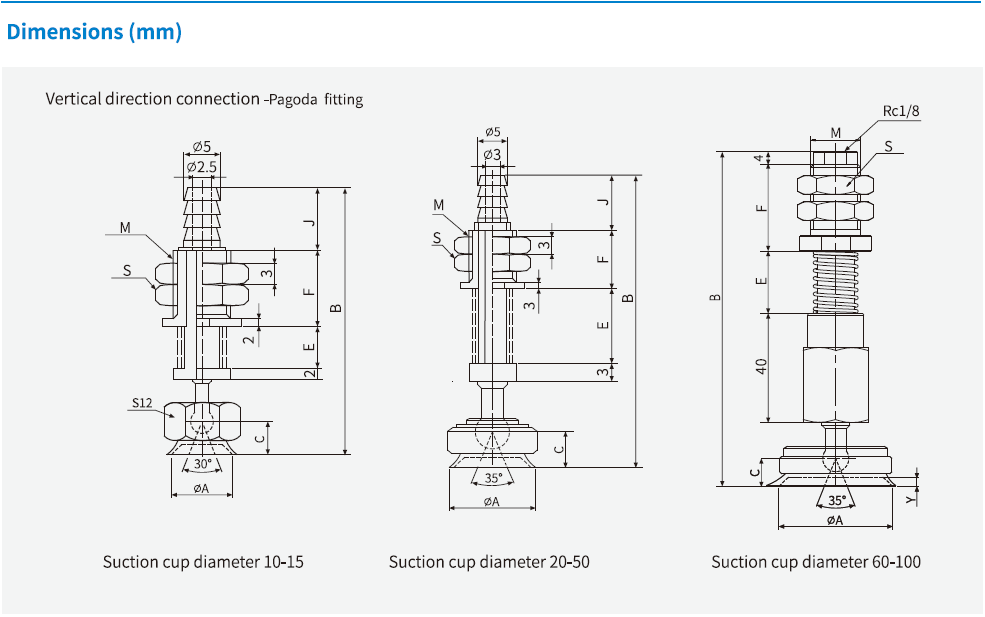

| Model/Size | A | B | C | D | I | J | M | Y | S |
| SPU10-B6-M8M | 10.0 | 50.5 | 5.0 | 22 | 16 | 17 | M8×1 | 1.0 | 12 |
| SPU15-B6-M8M | 15.0 | 51.5 | 6.0 | 22 | 16 | 17 | M8×1 | 1.4 | 12 |
| SPU20-B6-M10M | 20.0 | 70.0 | 9.0 | 22 | 16 | 22 | M10×1 | 2.0 | 14 |
| SPU25-B6-M10M | 25.0 | 70.5 | 9.5 | 32 | 16 | 22 | M10×1 | 2.5 | 14 |
| SPU30-B6-M10M | 30.0 | 71.0 | 10.0 | 32 | 16 | 22 | M10×1 | 2.0 | 14 |
| SPU35-B6-M10M | 35.0 | 72.0 | 11.0 | 32 | 16 | 22 | M10×1 | 3.0 | 14 |
| SPU40-B6-M14M | 40.0 | 76.5 | 11.0 | 32 | 16 | 22 | M14×1 | 3.0 | 17 |
| SPU50-B6-M14M | 50.0 | 77.5 | 12.0 | 32 | 16 | 22 | M14×1 | 4.0 | 17 |
| SPU60-R1-M16M | 60.0 | 78.2 | 16.0 | 40 | - | 23 | M16×1.5 | 5.0 | 21 |
| SPU80-R1-M16M | 80.0 | 80.2 | 18.0 | 40 | - | 23 | M16×1.5 | 6.0 | 21 |
| SPU100-R1-M16M | 100.0 | 80.2 | 18.0 | 40 | - | 23 | M16×1.5 | 6.0 | 21 |

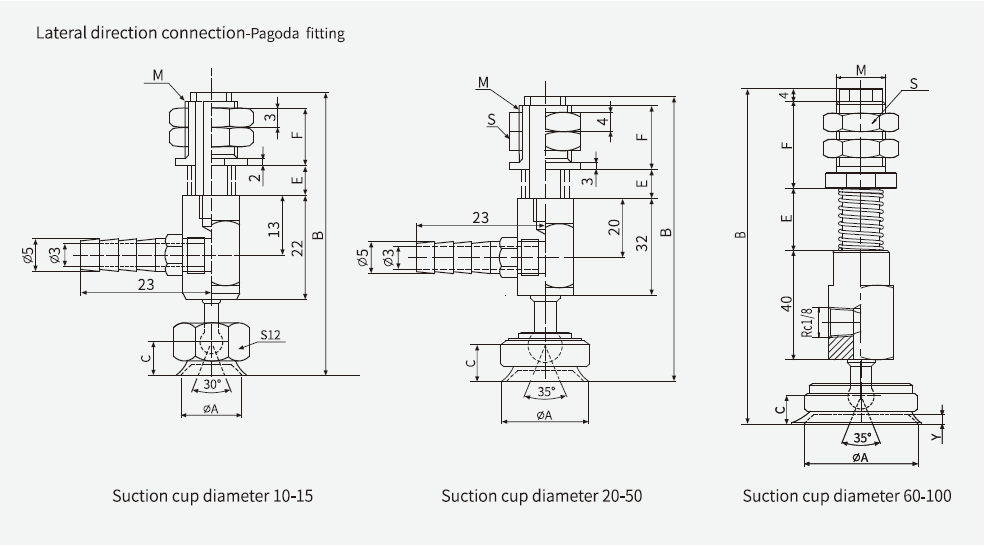

| Model/Size | A | B | C | D | I | J | M | Y | S |
| SPU10-LB6-M4F | 10.0 | 34.5 | 5.0 | 22 | 21 | 14 | M4 Depth 6 | 1.0 | 10 |
| SPU15-LB6-M4F | 15.0 | 35.5 | 6.0 | 22 | 21 | 14 | M4 Depth 6 | 1.4 | 10 |
| SPU20-LB6-M6F | 20.0 | 54.0 | 9.0 | 32 | 23 | 20 | M6 Depth 8 | 2.0 | 14 |
| SPU25-LB6-M6F | 25.0 | 54.5 | 9.5 | 32 | 23 | 20 | M6 Depth 8 | 2.5 | 14 |
| SPU30-LB6-M6F | 30.0 | 55.0 | 10.0 | 32 | 23 | 20 | M6 Depth 8 | 2.0 | 14 |
| SPU35-LB6-M6F | 35.0 | 56.0 | 11.0 | 32 | 23 | 20 | M6 Depth 8 | 3.0 | 14 |
| SPU40-LB6-M8F | 40.0 | 60.5 | 11.0 | 32 | 23 | 20 | M6 Depth 8 | 3.0 | 14 |
| SPU50-LB6-M8F | 50.0 | 61.5 | 12.0 | 32 | 23 | 20 | M6 Depth 8 | 4.0 | 14 |
| SPU60-LR1-M16M | 60.0 | 78.2 | 16.0 | 40 | - | 23 | M16×1.5 | 5.0 | 21 |
| SPU80-LR1-M16M | 80.0 | 80.2 | 18.0 | 40 | - | 23 | M16×1.5 | 6.0 | 21 |
| SPU100-LR1-M16M | 100.0 | 80.2 | 18.0 | 40 | - | 23 | M16×1.5 | 6 | 21 |
