Features

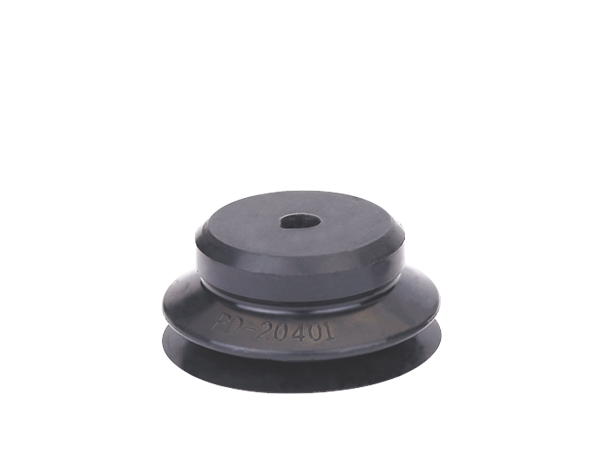

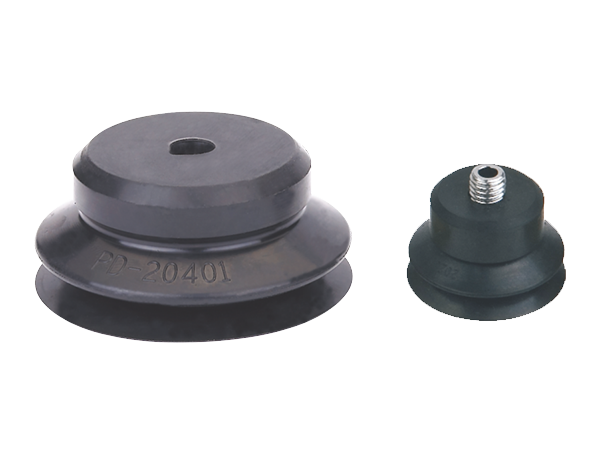

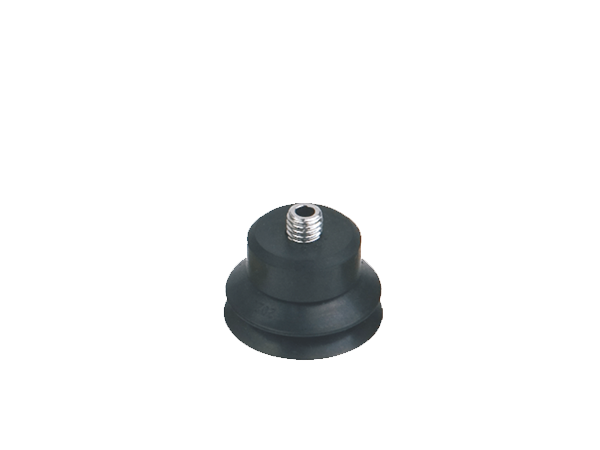

◇ 1.5 bellows suction cup suitable for workpiece with uneven surface.
◇ Thin lip and short stroke, suitable for handling light and thin workpiece.
◇ Various sizes, suitable for workpiece with different sizes.
Applications
◇ Panel
◇ Paper
◇ Plastic film
| How to order | ||||
| SPJ 15 N - M5M ① ② ③ ④ | ||||
| ① Series | ② Diameter | ④ Material & Hardness | ⑤ Connection thread | |
| SPJ | 4 - φ4mm 6 - φ6mm 8 - φ8mm 10 - φ10mm 15 - φ15mm 20 - φ20mm 25 - φ25mm | 30 - φ30mm 35 - φ35mm 40 - φ40mm 50 - φ50mm 60 - φ60mm 70 - φ70mm 80 - φ80mm | N - NBR WS - White silicone CN - Conductive NBR CS - Conductive silicone F - Florine rubber E - EPDM HD - High Temperature/ Non-mark material HP - Mark free rubber | Nil - Suction cup alone，no connection thread M3M - M3 Male thread M5M - M5 Male thread M8M - G1/8Female thread G1F - M8Male thread M10F - M10x1.25 Female thread M10F - M10x1.25 Female thread |
| Selection | |||||
| Model | M3M | M5M | M8M | G1F | |
| SPJ4 | ● | - | - | - | |
| SPJ6 | - | ● | - | - | |
| SPJ8 - 40 | - | - | - | - | |
| SPJ50 | - | - | ● | - | |
| SPJ60 - 80 | - | - | - | ● | |
◇Note: "●"- standard, in stock. "—"- unavailable.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm³) | Min. Curve radius of workpiece(mm) | Recommended tube diameter(mm) |
| SPJ4 | 0.6 | <0.1 | 4.0 | 4.0 |
| SPJ6 | 1.2 | <0.1 | 6.0 | 4.0 |
| SPJ8 | 2.2 | <0.1 | 8.0 | 4.0 |
| SPJ10 | 3.5 | 0.2 | 12.0 | 4.0 |
| SPJ15 | 8.0 | 0.5 | 20.0 | 6.0 |
| SPJ20 | 15.0 | 1.1 | 27.0 | 6.0 |
| SPJ25 | 24.0 | 2.2 | 40.0 | 6.0 |
| SPJ30 | 32.0 | 3.0 | 55.0 | 6.0 |
| SPJ35 | 43.0 | 4.5 | 65.0 | 6.0 |
| SPJ40 | 60.0 | 6.0 | 80.0 | 6.0 |
| SPJ50 | 92.0 | 11.7 | 95.0 | 8.0 |
| SPJ60 | 127.0 | 20.0 | 125.0 | 8.0 |
| SPJ70 | 173.0 | 30.0 | 150.0 | 8.0 |
| SPJ80 | 226.0 | 40.0 | 140.0 | 8.0 |
◇Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

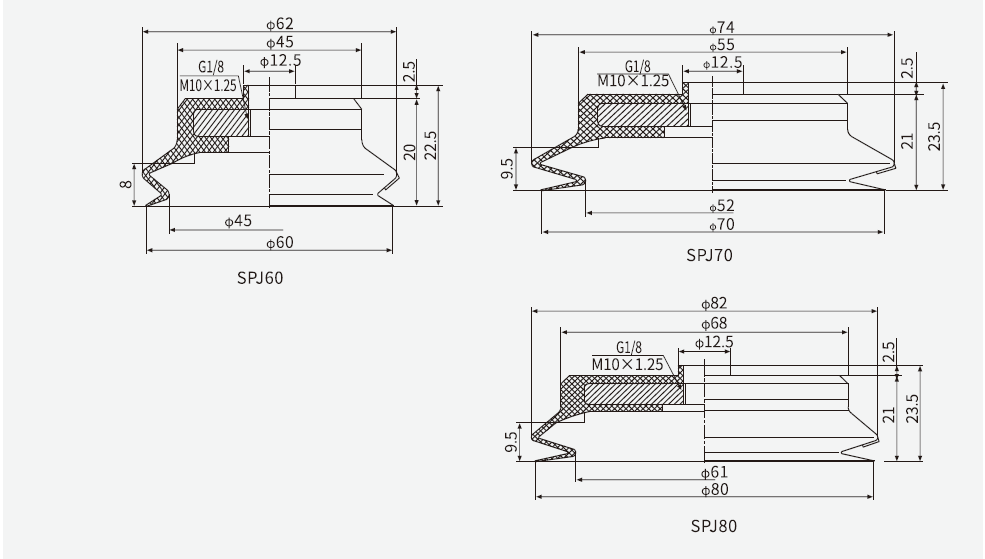

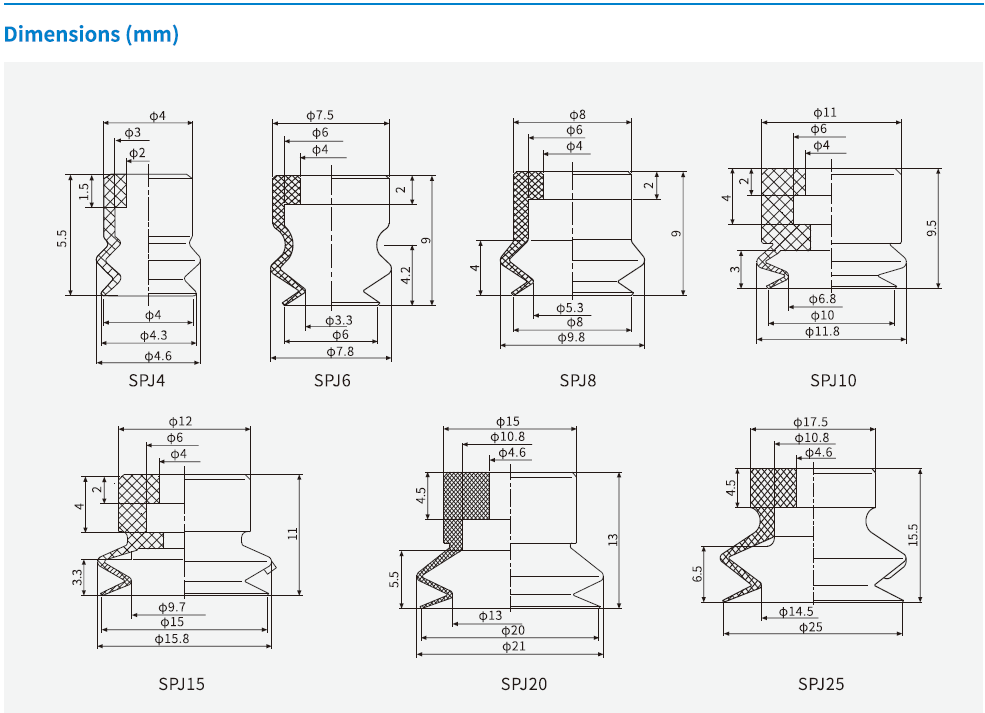

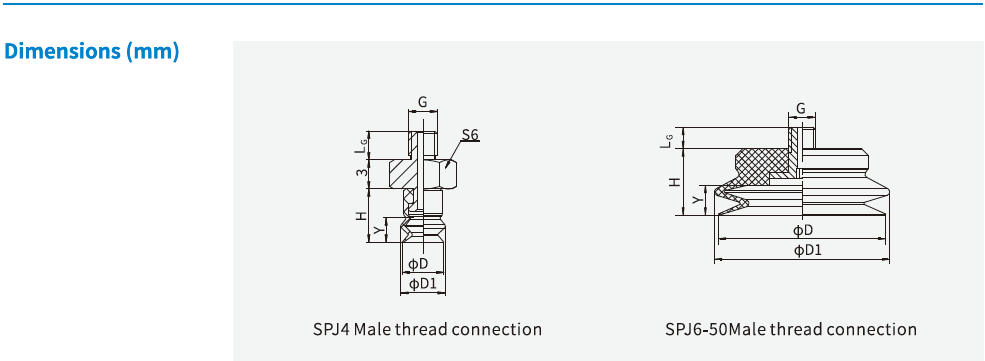

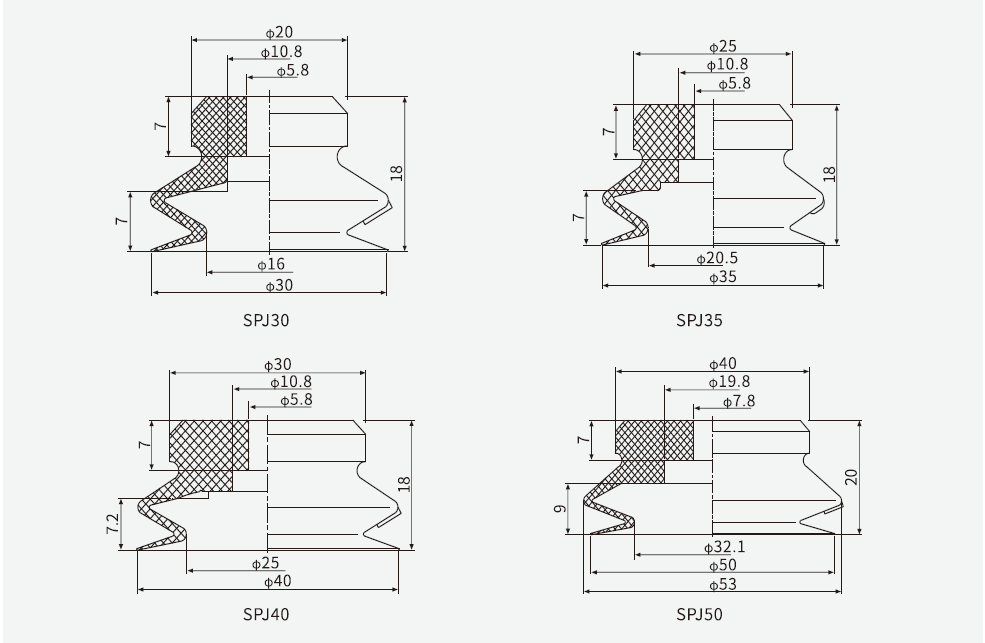

| Model/Size | D | D1 | H | Y | G | LG |
| SPJ4-M3M | 4.0 | 4.6 | 5.5 | 2.3 | M3 | 5.0 |
| SPJ6-M5M | 6.0 | 7.8 | 9.0 | 4.2 | M5 | 5.0 |
| SPJ8-M5M | 8.0 | 9.8 | 9.0 | 4.0 | M5 | 5.0 |
| SPJ10-M5M | 10.0 | 11.8 | 9.5 | 3.0 | M5 | 5.0 |
| SPJ15-M5M | 15.0 | 15.8 | 11.0 | 3.3 | M5 | 5.0 |
| SPJ20-M5M | 20.0 | 21.0 | 13.0 | 5.5 | M5 | 5.0 |
| SPJ25-M5M | 25.0 | - | 15.5 | 6.5 | M5 | 5.0 |
| SPJ30-M5M | 30.0 | - | 18.0 | 7.0 | M5 | 5.0 |
| SPJ35-M5M | 35.0 | - | 18.0 | 7.0 | M5 | 5.0 |
| SPJ40-M5M | 40.0 | - | 18.0 | 7.2 | M5 | 5.0 |
| SPJ50-M8M | 50.0 | 53.0 | 20.0 | 9.0 | M8 | 6.5 |
| Mounting parts | ||||||
| Item | Model | Applicable suction cup | ||||
| Fitting for suction cup | PJS-M3M-ST1 | SPJ4 | ||||
| PJS-M5M-ST2 | SPJ6、8、10、15 | |||||
| PJS-M5M-ST3 | SPJ20、25 | |||||
| PJS-M5M-ST4 | SPJ30、35、40 | |||||
| PJS-M8M-ST6 | SPJ50 | |||||
