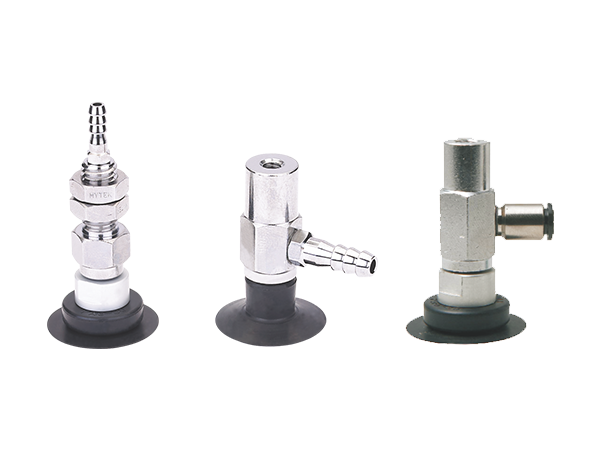

| How to order | |||
| SPA15AN L B6 - M9M ① ② ③ ④ | |||
| ① Model | ② Vacuum port direction | ③ Connection | ④ Connection thread |
| SPA15AN | Nil - Vertical L - Lateral | A6 -One touch fitting φ6 hose B6 -Pagoda fittingφ6 hose | M4F - M4 Female thread M6F -M6 Female thread M9M -M9×1 Male thread M10M -M10×1 Male thread M12M -M12×1 Male thread M14M -M14×1 Male thread |
| Selection | ||||||
| Model | Vacuum port connection | Mounting thread | ||||
| SPA10-20 | A6 | M12M | ||||
| LA6 LB6 | M4F | |||||
| B6 | M9M | |||||
| A6 | M14M | |||||
| LA6 LB6 | M6F | |||||
| B6 | M10M | |||||

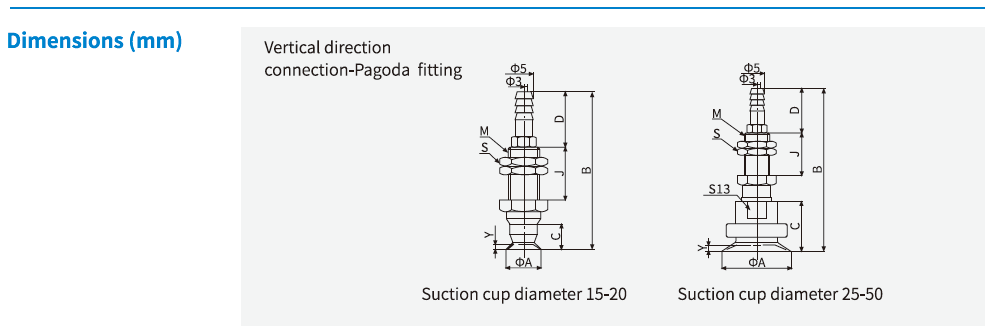

| Model/ Size | A | B | C | D | Y | S | M | J |
| SPA10A-B6-M9M | 10.0 | 46.0 | 7.5 | 16.0 | 0.6 | 12.0 | M9×1 | 15.5 |
| SPA10B-B6-M9M | 10.0 | 46.0 | 7.5 | 16.0 | 0.3 | 12.0 | M9×1 | 15.5 |
| SPA15A-B6-M9M | 15.0 | 46.0 | 7.5 | 16.0 | 0.9 | 12.0 | M9×1 | 15.5 |
| SPA15B-B6-M9M | 15.0 | 46.0 | 7.5 | 16.0 | 0.5 | 12.0 | M9×1 | 15.5 |
| SPA15X-B6-M9M | 15.0 | 44.0 | 5.5 | 16.0 | 0.3 | 12.0 | M9×1 | 15.5 |
| SPA20A-B6-M9M | 20.0 | 48.5 | 10.0 | 16.0 | 1.2 | 12.0 | M9×1 | 15.5 |
| SPA20B-B6-M9M | 20.0 | 48.5 | 10.0 | 16.0 | 0.8 | 12.0 | M9×1 | 15.5 |
| SPA25A-B6-M10M | 25.0 | 67.2 | 18.0 | 16.0 | 1.5 | 14.0 | M10×1 | 20 |
| SPA30A-B6-M10M | 30.0 | 67.2 | 18.0 | 16.0 | 1.8 | 14.0 | M10×1 | 20 |
| SPA30B-B6-M10M | 30.0 | 60.2 | 11.0 | 16.0 | 1.5 | 14.0 | M10×1 | 20 |
| SPA40A-B6-M10M | 40.0 | 67.2 | 18.0 | 16.0 | 2.4 | 14.0 | M10×1 | 20 |
| SPA50A-B6-M10M | 50.0 | 67.2 | 18.0 | 16.0 | 3.0 | 14 | M10×1 | 20 |

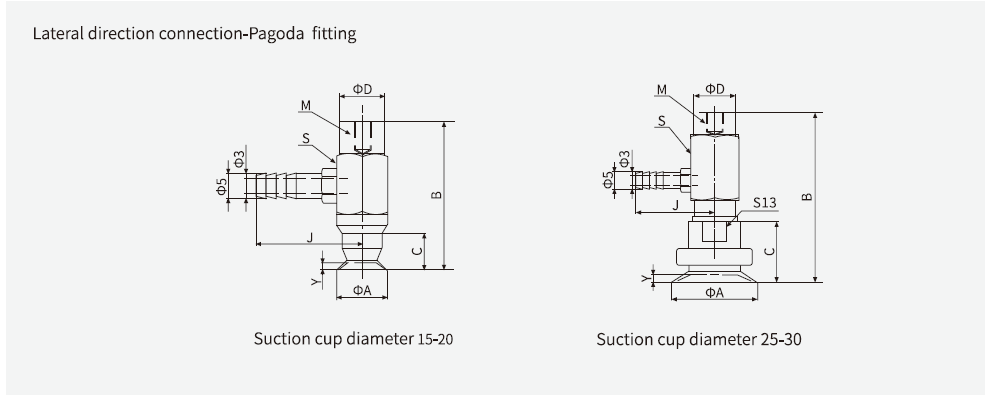

| Model/ Size | A | B | C | D | Y | S | M | J |
| SPA10A-LB6-M4F | 10 | 30 | 7.5 | 10 | 0.6 | 12 | M4 Depth 6 | 21 |
| SPA10B-LB6-M4F | 10 | 30 | 7.5 | 10 | 0.3 | 12 | M4 Depth 6 | 21 |
| SPA15A-LB6-M4F | 15 | 30 | 7.5 | 10 | 0.9 | 12 | M4 Depth 6 | 21 |
| SPA15B-LB6-M4F | 15 | 30 | 7.5 | 10 | 0.5 | 12 | M4 Depth 6 | 21 |
| SPA15X-LB6-M4F | 15 | 28 | 5.5 | 10 | 0.3 | 12 | M4 Depth 6 | 21 |
| SPA20A-LB6-M4F | 20 | 32.5 | 10 | 10 | 1.2 | 12 | M4 Depth 6 | 21 |
| SPA20B-LB6-M4F | 20 | 32.5 | 10 | 10 | 0.8 | 12 | M4 Depth 6 | 21 |
| SPA25A-LB6-M6F | 25 | 51.5 | 18 | 12 | 1.5 | 14 | M6 Depth 8 | 23 |
| SPA30A-LB6-M6F | 30 | 51.5 | 18 | 12 | 1.8 | 14 | M6 Depth 8 | 23 |
| SPA30B-LB6-M6F | 30 | 44.5 | 11 | 12 | 1.5 | 14 | M6 Depth 8 | 23 |
| SPA40A-LB6-M6F | 40 | 51.5 | 18 | 12 | 2.4 | 14 | M6 Depth 8 | 23 |
| SPA50A-LB6-M6F | 50 | 51.5 | 18 | 12 | 3 | 14 | M6 Depth 8 | 23 |

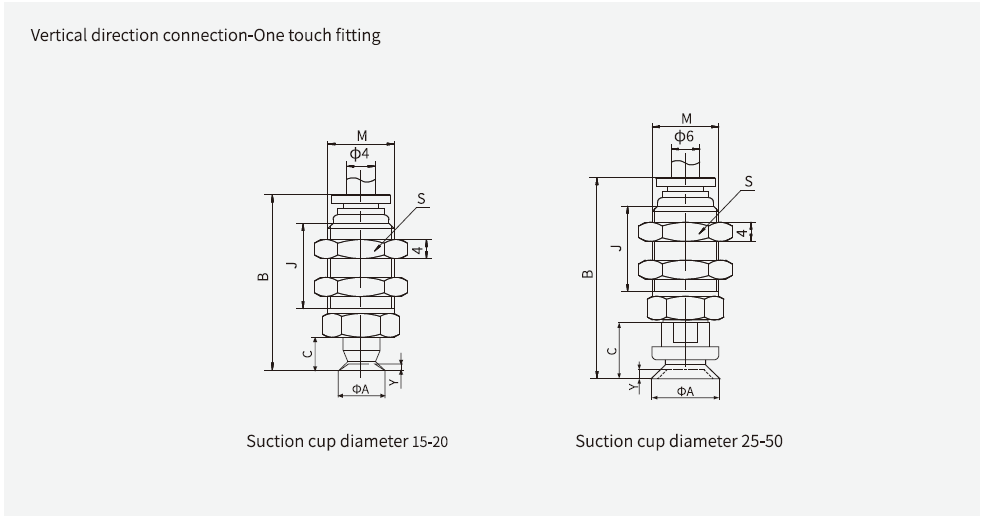

| Model/ Size | A | B | C | J | M | Y | S |
| SPA10A-A4-M12M | 10 | 35 | 7.5 | 17.5 | M12×1 | 0.6 | 14 |
| SPA10B-A4-M12M | 10 | 35 | 7.5 | 17.5 | M12×1 | 0.3 | 14 |
| SPA15A-A4-M12M | 15 | 35 | 7.5 | 17.5 | M12×1 | 0.9 | 14 |
| SPA15B-A4-M12M | 15 | 35 | 7.5 | 17.5 | M12×1 | 0.5 | 14 |
| SPA15X-A4-M12M | 15 | 33 | 5.5 | 17.5 | M12×1 | 0.3 | 14 |
| SPA20A-A4-M12M | 20 | 37.5 | 10 | 17.5 | M12×1 | 1.2 | 14 |
| SPA20B-A4-M12M | 20 | 37.5 | 10 | 17.5 | M12×1 | 0.8 | 14 |
| SPA25A-A4-M12M | 25 | 48 | 18 | 18 | M14×1 | 1.5 | 17 |
| SPA30A-A6-M14M | 30 | 48 | 18 | 18 | M14×1 | 1.8 | 17 |
| SPA30B-A6-M14M | 30 | 40 | 11 | 18 | M14×1 | 1.5 | 17 |
| SPA40A-A6-M14M | 40 | 48 | 18 | 18 | M14×1 | 2.4 | 17 |
| SPA50A-A6-M14M | 50 | 48 | 18 | 18 | M14×1 | 3 | 17 |

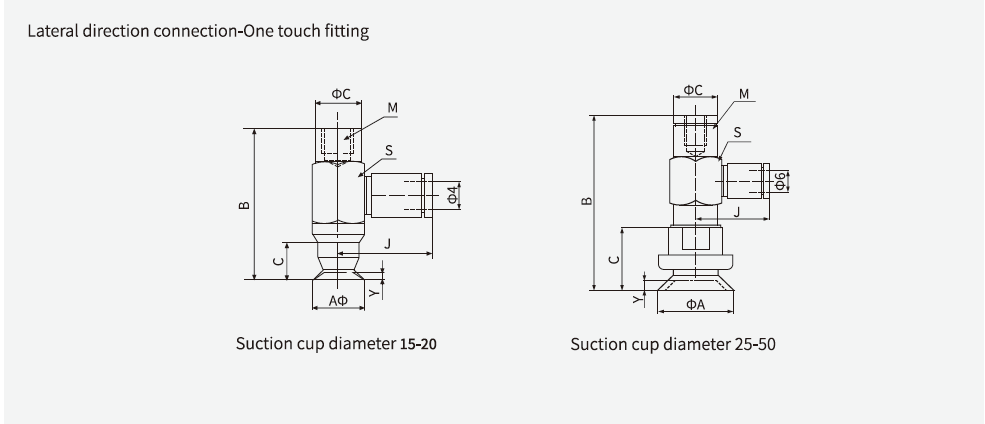

| Model/ Size | A | B | C | D | J | M | Y | S |
| SPA10A-LA4-M4F | 10 | 30 | 7.5 | 7.5 | 20 | M4 Depth 6 | 0.6 | 10 |
| SPA10B-LA4-M4F | 10 | 30 | 7.5 | 7.5 | 20 | M4 Depth 6 | 0.3 | 10 |
| SPA15A-LA4-M4F | 15 | 30 | 7.5 | 7.5 | 20 | M4 Depth 6 | 0.9 | 10 |
| SPA15B-LA4-M4F | 15 | 30 | 7.5 | 7.5 | 20 | M4 Depth 6 | 0.5 | 10 |
| SPA15X-LA4-M4F | 15 | 28 | 5.5 | 7.5 | 20 | M4 Depth 6 | 0.3 | 10 |
| SPA20A-LA4-M4F | 20 | 32.5 | 10 | 7.5 | 20 | M4 Depth 6 | 1.2 | 10 |
| SPA20B-LA4-M4F | 20 | 32.5 | 10 | 7.5 | 20 | M4 Depth 6 | 0.8 | 10 |
| SPA25A-LA6-M6F | 25 | 51.5 | 18 | 12 | 23 | M6 Depth 8 | 1.5 | 14 |
| SPA30A-LA6-M6F | 30 | 51.5 | 18 | 12 | 23 | M6 Depth 8 | 1.8 | 14 |
| SPA30B-LA6-M6F | 30 | 44.5 | 11 | 12 | 23 | M6 Depth 8 | 1.5 | 14 |
| SPA40A-LA6-M6F | 40 | 51.5 | 18 | 12 | 23 | M6 Depth 8 | 2.4 | 14 |
| SPA50A-LA6-M6F | 50 | 51.5 | 18 | 12 | 23 | M6 Depth 8 | 3 | 14 |
