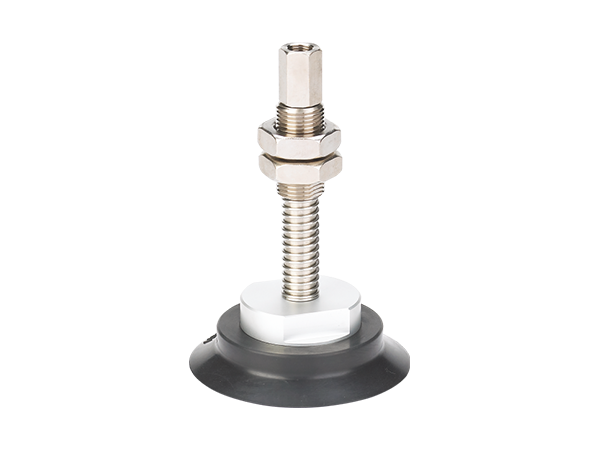

| How to order | ||
| SH40N H- E 25 LR1-M18 ① ② ③ ④ ⑤ ⑥ | ||
| ① Model | ② Level compensator type | ③ Buffer style |
| SH40N | H - PSPH Series | E - External spring |
| ④ Buffer stroke | ⑤ Vacuum port direction | ⑥ Mounting thread |
| 25 50 75 100 | Nil - Vertical,Rc1/8 Female thread LR1- LateralRc1/8Female thread | M18 - M18x1.5 M22 - M22x1.5 |
| Selection | ||||||
| Model | Buffer stroke | Mounting thread | ||||
| 25 | 50 | 75 | 100 | M18 | M22 | |
| SH40 - 80 | ● | ● | ● | - | ● | - |
| SH100 - 125 | ● | ● | ● | ● | - | ● |
◇Note: "●"- standard, in stock. "—"-unavailable.

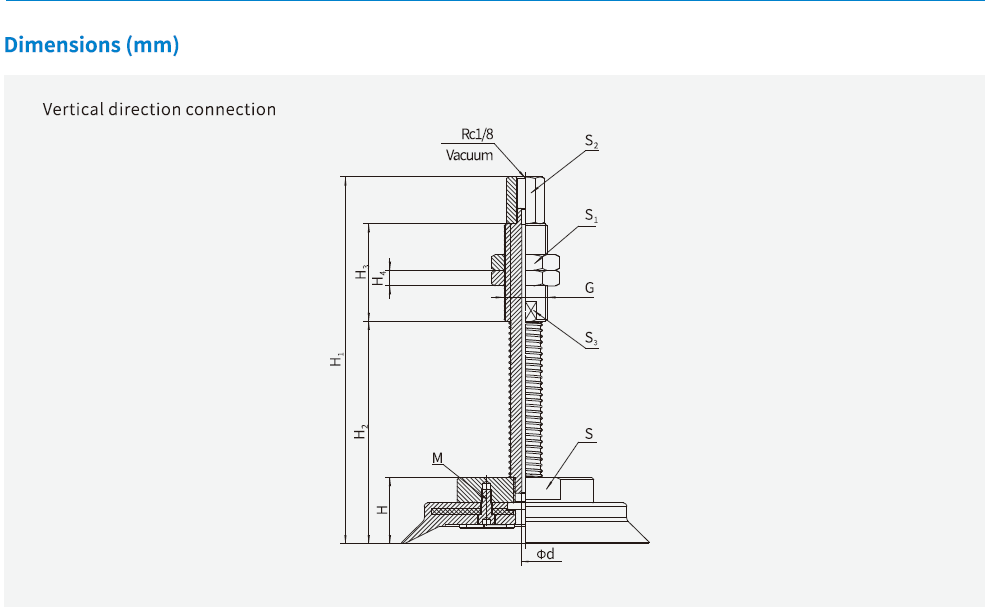

| Model/Size | H | H1 | H2 | H3 | H4 | d | G | M | S | S1 | S2 | S3 |
| SH40-HE25-M18 | 23 | 118.5 | 63 | 35 | 6 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 |
| SH40-HE50-M18 | 23 | 153.5 | 98 | 35 | 6 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 |
| SH40-HE75-M18 | 23 | 189.5 | 134 | 35 | 6 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 |
| SH50-HE25-M18 | 23 | 118.5 | 63 | 35 | 6 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 |
| SH50-HE50-M18 | 23 | 153.5 | 98 | 35 | 6 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 |
| SH50-HE75-M18 | 23 | 189.5 | 134 | 35 | 6 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 |
| SH63-HE25-M18 | 26 | 121.5 | 66 | 35 | 6 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 |
| SH63-HE50-M18 | 26 | 156.5 | 101 | 35 | 6 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 |
| SH63-HE75-M18 | 26 | 192.5 | 137 | 35 | 6 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 |
| SH80-HE25-M18 | 28 | 123.5 | 68 | 35 | 6 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 |
| SH80-HE50-M18 | 28 | 158.5 | 103 | 35 | 6 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 |
| SH80-HE75-M18 | 28 | 194.5 | 139 | 35 | 6 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 |
| SH100-HE25-M22 | 34 | 152 | 78 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH100-HE50-M22 | 34 | 188 | 114 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH100-HE75-M22 | 34 | 228 | 154 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH100-HE100-M22 | 34 | 263 | 189 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH125-HE25-M22 | 34 | 152 | 78 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH125-HE50-M22 | 34 | 188 | 114 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH125-HE75-M22 | 34 | 228 | 154 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |
| SH125-HE100-M22 | 34 | 263 | 189 | 50 | 8 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 |

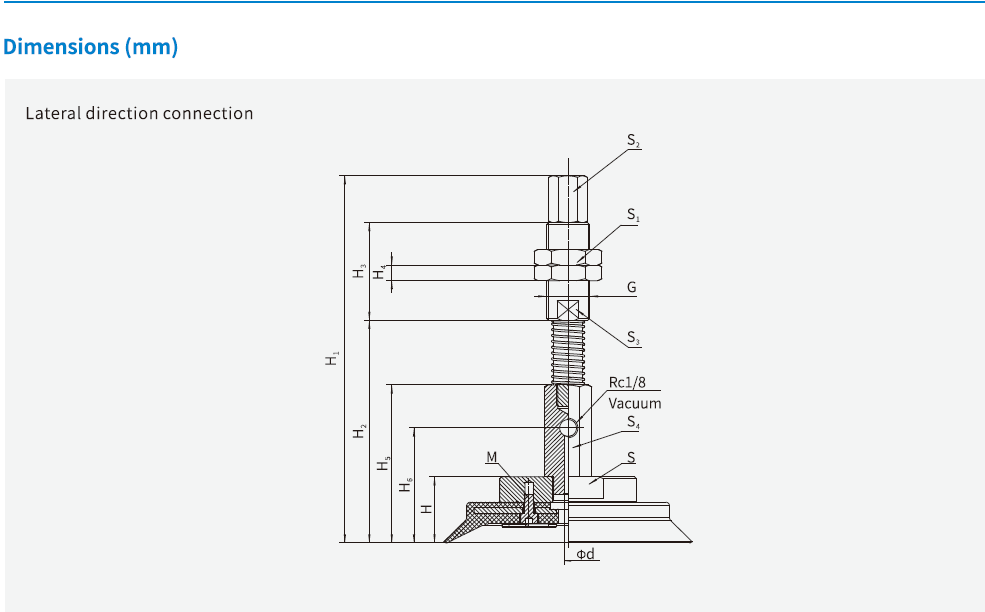

| Model/Size | H | H1 | H2 | H3 | H4 | H5 | H6 | d | G | M | S | S1 | S2 | S3 | S4 |
| SH40-HE25LR1-M18 | 23 | 151 | 100 | 35 | 6 | 60 | 38 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 | 21 |
| SH40-HE50LR1-M18 | 23 | 186 | 135 | 35 | 6 | 60 | 38 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 | 21 |
| SH40-HE75LR1-M18 | 23 | 222 | 171 | 35 | 6 | 60 | 38 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 | 21 |
| SH50-HE25LR1-M18 | 23 | 151 | 100 | 35 | 6 | 60 | 38 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 | 21 |
| SH50-HE50LR1-M18 | 23 | 186 | 135 | 35 | 6 | 60 | 38 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 | 21 |
| SH50-HE75LR1-M18 | 23 | 222 | 171 | 35 | 6 | 60 | 38 | 3 | M18×1.5 | 3-M3 | 24 | 27 | 14 | 16 | 21 |
| SH63-HE25LR1-M18 | 26 | 154 | 103 | 35 | 6 | 63 | 41 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 | 21 |
| SH63-HE50LR1-M18 | 26 | 189 | 136 | 35 | 6 | 63 | 41 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 | 21 |
| SH63-HE75LR1-M18 | 26 | 225 | 172 | 35 | 6 | 63 | 41 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 | 21 |
| SH80-HE25LR1-M18 | 28 | 156 | 105 | 35 | 6 | 63 | 41 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 | 21 |
| SH80-HE50LR1-M18 | 28 | 191 | 138 | 35 | 6 | 63 | 41 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 | 21 |
| SH80-HE75LR1-M18 | 28 | 227 | 174 | 35 | 6 | 63 | 41 | 3 | M18×1.5 | 4-M4 | 37 | 27 | 14 | 16 | 21 |
| SH100-HE25LR1-M22 | 34 | 186 | 115 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH100-HE50LR1-M22 | 34 | 222 | 151 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH100-HE75LR1-M22 | 34 | 262 | 191 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH100-HE100LR1-M22 | 34 | 297 | 226 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH125-HE25LR1-M22 | 34 | 186 | 115 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH125-HE50LR1-M22 | 34 | 222 | 151 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH125-HE75LR1-M22 | 34 | 262 | 191 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
| SH125-HE100LR1-M22 | 34 | 297 | 226 | 50 | 8 | 71 | 49 | 4 | M22×1.5 | 4-M5 | 60 | 30 | 17 | 19 | 21 |
