Features

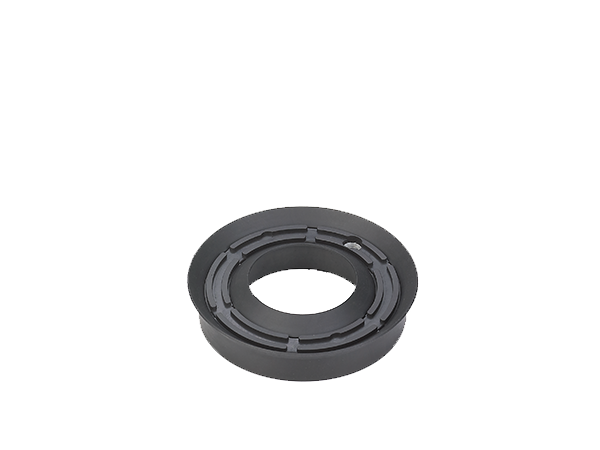

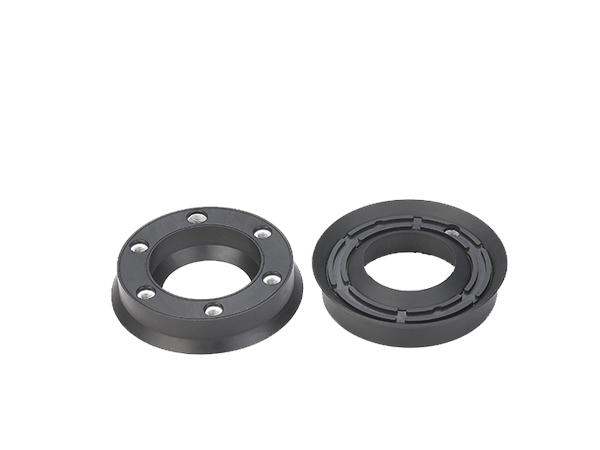

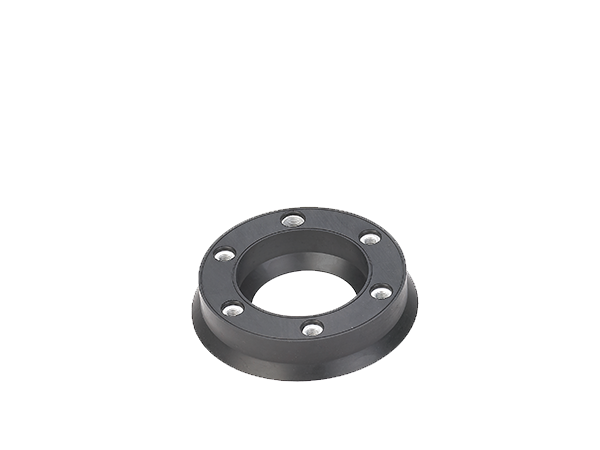

◇ The Suction cup is closed annular structure, consisting of inner and outer sealing lips
◇ Annular installation is firm and prevents the suction cup from loosening.
◇ Customer can design the inspection instrument according to the hollow part, so as to separate
the annular vacuum part from the inspection inductor.
Applications
◇ Steel plate
◇ Plastic plate
◇ Metal sheet
◇ Annular metal stamped parts
◇ Plywood
| How to order | |||||
| SDL 100 N -G1F ① ② ③ ④ | |||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ||
| SDL 100 N | 100 - φ100mm | N - NBR | G1F - G1/8Female thread | ||
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm³) | Min. Curve radius of workpiece(mm) | Recommended tube diameter(mm) |
| SDL100 | 353.0 | 44.0 | 76.0 | 8.0 |
◇Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

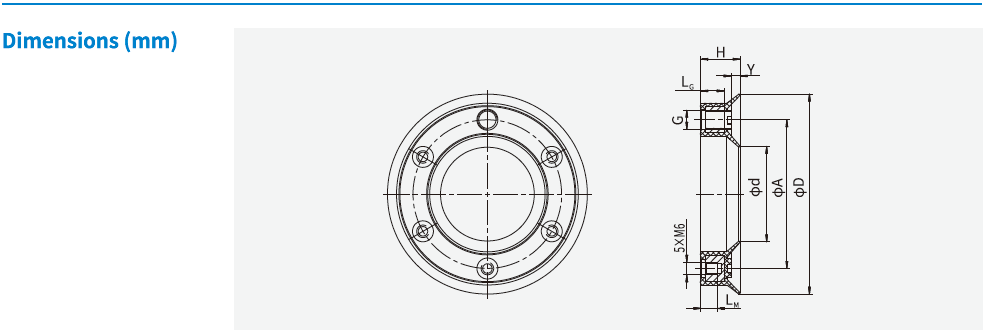

| Model/Size | D | d | H | Y | A | G | LG | LM |
| SDL100 | 100.0 | 47.5 | 21.0 | 5.0 | 74.0 | G1/8 | 11.5 | 9.0 |
