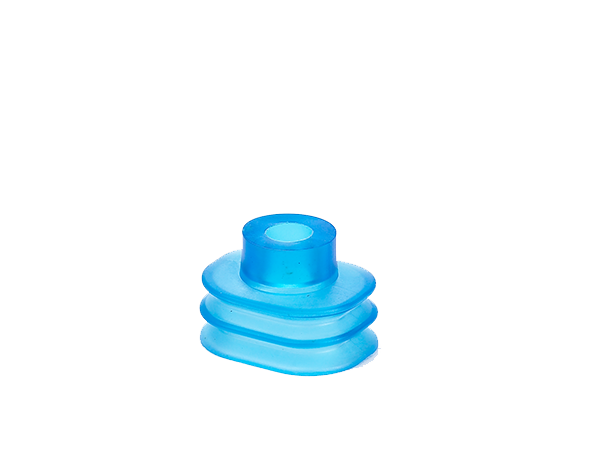

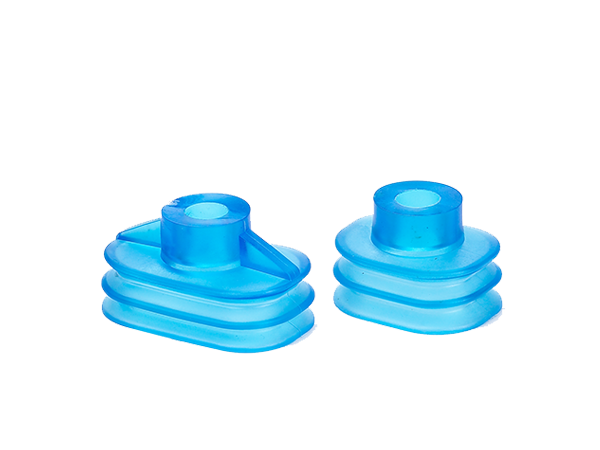

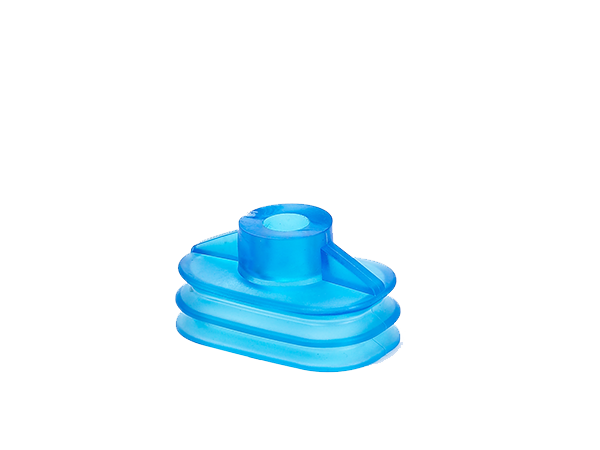

Features
◇ Strong suction force and good wear resistance.
◇ Suitable for case unpacking machine and soft and rigid packing material.
◇ Suitable for applications of washing packing bags which have chlorinated disinfectant.(pharmaceuticals industry).
◇ Bellows structure and soft seal lip are suitable for handling fragile and long and thin workpiece.
Applications
◇ CD& DVD
◇ Thin and long package
◇ Packing box, packing bag
| How to order | ||||
| SBOF 35×28 V -M10M ① ② ③ ④ | ||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | |
| SBOF | 35×28mm 45×28mm | V - Vinyl | Nil - Suction cup alone M10M - M10 Male thread G2M - G1/4 Male thread G2F - G1/4 Female thread | |
| Selection | |||
| Model/ Connection thread | M10M | G2M | G2F |
| SBOF35×28 | ● | ● | ● |
| SBOF45×28 | ● | ● | ● |
◇Note: "●"- standard, in stock.
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) |
| SBOF35×28 | 44 | 22 | 39 | 8 |
| SBOF45×28 | 57 | 26 | 39 | 8 |
◇ Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

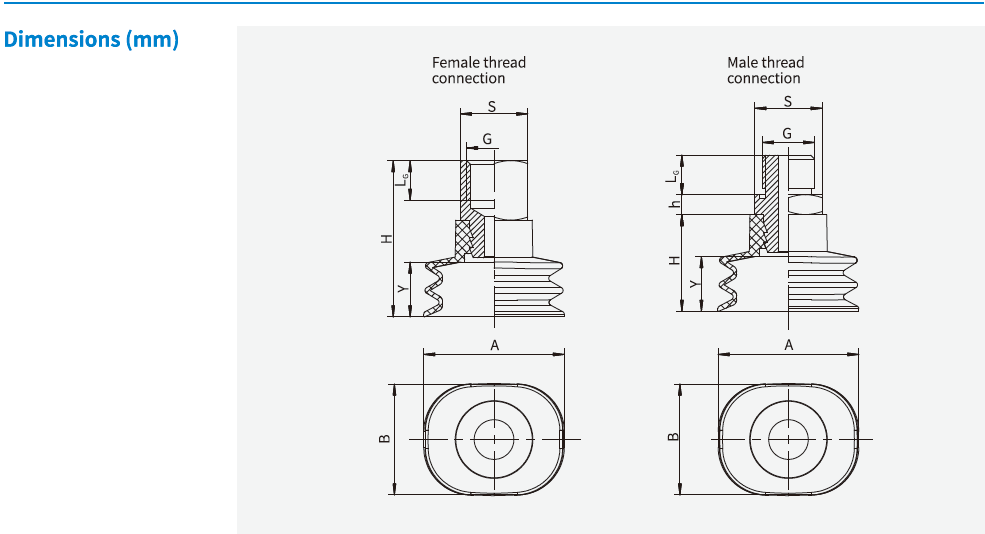

| Model/ Size | A | B | H | Y | h | G | LG | S |
| SBOF35×28-M10M | 35 | 28 | 24.5 | 12 | 5 | M10 | 10 | 17 |
| SBOF35×28-G2M | 35 | 28 | 24.5 | 12 | 5 | G1/4 | 10 | 17 |
| SBOF35×28-G2F | 35 | 28 | 39.5 | 12 | - | G1/4 | 12 | 17 |
| SBOF45×28-M10M | 45 | 28 | 25 | 13 | 5 | M10 | 10 | 17 |
| SBOF45×28-G2M | 45 | 28 | 25 | 13 | 5 | G1/4 | 10 | 17 |
| SBOF45×28-G2F | 45 | 28 | 40 | 13 | - | G1/4 | 12 | 17 |
| Mounting parts | ||||||||
| Item | Model | Applicable suction cup | ||||||
| Fitting for suction cup | PJS-M10M-SBOF PJS-G2M-SBOF PJS-G2F-SBOF | SBOF35×28、45×28 | ||||||
