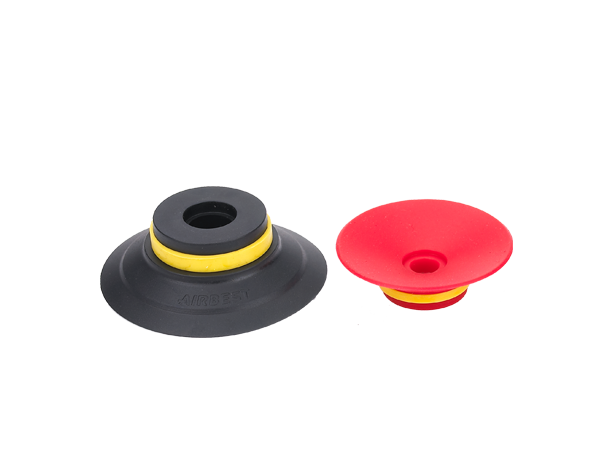

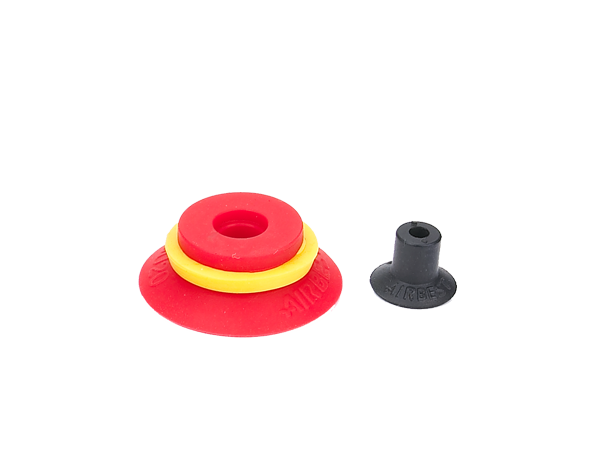

Features
◇ Suitable for handling workpiece with curve surface.
◇ Various materials for different workpieces. Conductive silicone can effectively prevent static damage to
electronic products. Fluorine rubber material has good corrosion resistance.
◇ Various sizes are available for workpiece with different shapes and sizes.
Applications
◇ Paper box packaging
◇ Small semiconductor material
| How to order | |||||||
| SU 30 N -G1F ① ② ③ ④ | |||||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ||||
| SU | 2 - φ2mm 4 - φ4mm 6 - φ6mm 8 - φ8mm 10 - φ10mm 15 - φ15mm | 20 - φ20mm 25 - φ25mm 30 - φ30mm 40 - φ40mm 50 - φ50mm 80 - φ80mm | N -NBR S -Silicone WS -White silicone CS -Conductive silicone | Nil - Suction cup alone M5M - M5 Male thread GIF - Gl/8 Female thread G1M - Gl/8 Male thread G2F - Gl/4 Female thread G2M - Gl/4 Male thread | |||
| Selection | |||||||
| Model/ Connection thread | M5M | G1M | G1F | G2F | G2M | G3F | G3M |
| SU2 - 8 | ● | - | - | ● | ● | ● | ● |
| SU20 - 40 | - | ● | ● | - | - | - | - |
| SU50 | - | - | ● | - | - | - | - |
| SU80 | - | - | - | - | - | - | - |
◇Note： "●"standard, in stock.； "- "unavailable
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm³) | Min. curve radius of workpiece (mm) | Recommended hose dia (mm) |
| SU2 | 1 | <0.1 | 3 | 4 |
| SU4 | 1 | <0.1 | 4 | 4 |
| SU6 | 2 | <0.1 | 7.5 | 4 |
| SU8 | 3 | <0.1 | 10 | 4 |
| SU10 | 5 | <0.1 | 12 | 6 |
| SU15 | 7 | 1 | 20 | 6 |
| SU20 | 10 | 1 | 30 | 6 |
| SU25 | 18 | 1 | 45 | 6 |
| SU30 | 33 | 2 | 45 | 6 |
| SU40 | 60 | 3 | 65 | 6 |
| SU50 | 92 | 7 | 80 | 6 |
| SU80 | 210 | 24 | 120 | 8 |
◇Note：Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

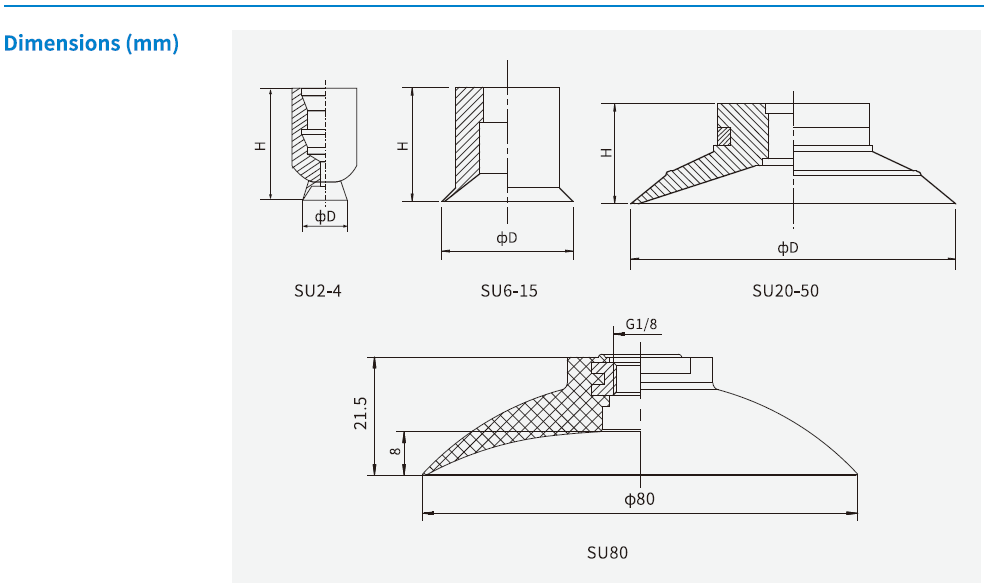

| Model/Size | D | H | |
| SU2 | 2.6 | 12 | |
| SU4 | 4.6 | 12 | |
| SU6 | 7 | 6.5 | |
| SU8 | 9 | 7 | |
| SU10 | 11 | 10.5 | |
| SU15 | 16.5 | 11 | |
| SU20 | 22 | 8 | |
| SU25 | 27 | 9 | |
| SU30 | 32 | 9.5 | |
| SU40 | 42 | 13 | |
| SU50 | 53 | 17.5 |

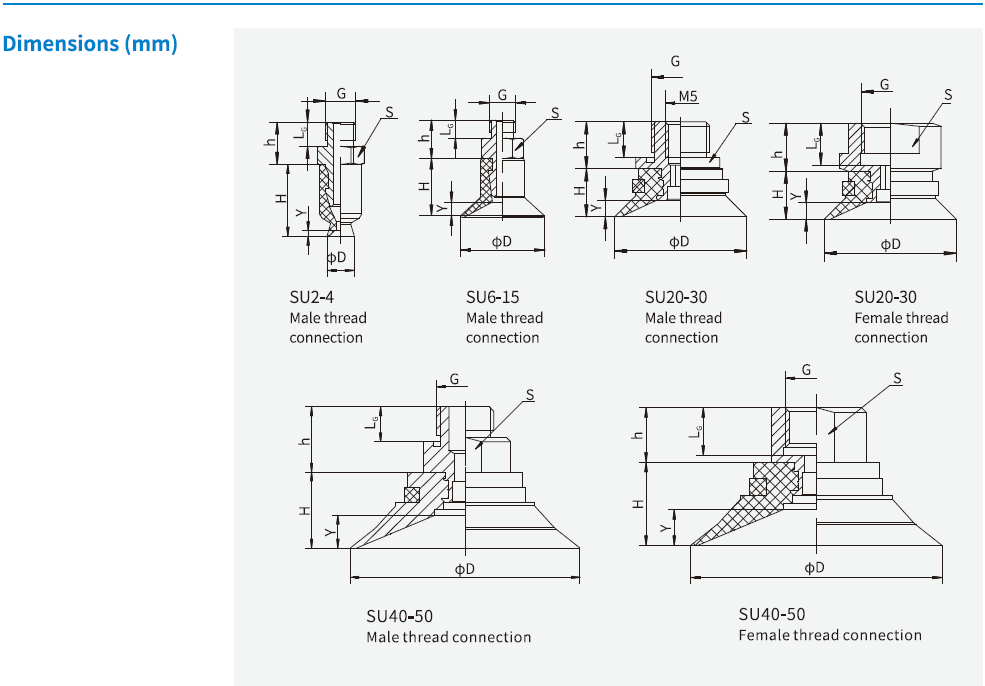

| Model/Size | D | H | G | LG | h | S | Y |
| SU2-M5M | 2.6 | 12 | M5 | 4 | 7 | 7 | 0.6 |
| SU4-M5M | 4.6 | 12 | M5 | 4 | 7 | 7 | 0.9 |
| SU6-M5M | 7 | 6.5 | M5 | 3.5 | 7.5 | 7 | 1.5 |
| SU8-M5M | 9 | 7 | M5 | 3.5 | 7.5 | 7 | 2 |
| SU10-M5M | 11 | 10.5 | M5 | 3.5 | 7.5 | 7 | 2 |
| SU15-M5M | 16.5 | 11 | M5 | 3.5 | 7.5 | 7 | 3 |
| SU20-G1F | 22 | 8 | G1/8 | 7 | 8 | 13 | 2.2 |
| SU20-G1M | 22 | 8 | G1/8 | 6 | 7.8 | 13 | 2.2 |
| SU25-G1F | 27 | 9 | G1/8 | 7 | 8 | 13 | 2.9 |
| SU25-G1M | 27 | 9 | G1/8 | 6 | 7.8 | 13 | 2.9 |
| SU30-G1F | 32 | 9.5 | G1/8 | 7 | 8 | 13 | 4.5 |
| SU30-G1M | 32 | 9.5 | G1/8 | 6 | 7.8 | 13 | 4.5 |
| SU40-G1F | 42 | 13 | G1/8 | 7 | 10 | 17 | 5.2 |
| SU40-G1M | 42 | 13 | G1/8 | 6 | 12 | 17 | 5.2 |
| SU50-G2F | 53 | 17.5 | G1/4 | 10 | 13 | 24 | 7 |
| SU50-G2M | 53 | 17.5 | G1/4 | 9 | 17 | 24 | 7 |
| SU50-G3F | 53 | 17.5 | G3/8 | 10 | 13 | 24 | 7 |
| SU50-G3M | 53 | 17.5 | G3/8 | 10 | 18 | 24 | 7 |
| Mounting parts | |||||||||
| Item | Model | Applicable suction cup | |||||||
| F- Female thread | M - Male thread | ||||||||
| Fitting for suction cup | - | PJS-M5M-SC1 | SU2、4 | ||||||
| - | PJS-M5M-SC2 | SU6、8 | |||||||
| - | PJS-M5M-SC3 | SU10、15 | |||||||
| PJS-G1F-SF1 | PJS-G1M-SF1 | SU20、25、30 | |||||||
| PJS-G1F-SF2 | PJS-G1M-SF2 | SU40 | |||||||
| PJS-G2F-SF3 | PJS-G2M-SF3 | SU50 | |||||||
| PJS-G3F-SF3 | PJS-G3M-SF3 | SU50 | |||||||
