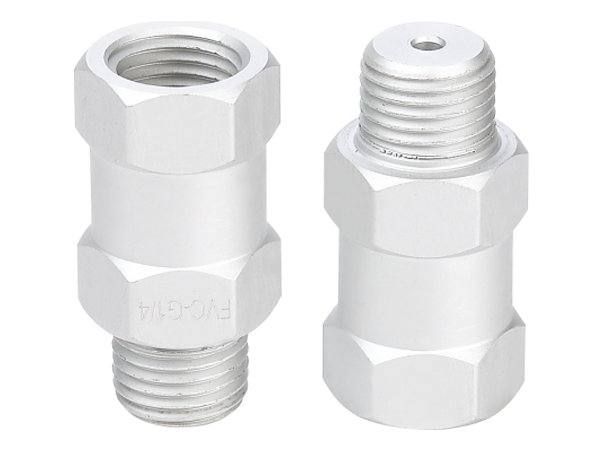

Features
◇ In the process of grabbing workpiece, it will not affect the whole vacuum system once suction cups do ot suck the workpiece or the workpiece falls off after
absorption.
◇ In above condition, the suction cups are isolated from vacuum system to make sure that the vacuum level and vacuum flow in the whole vacuum system are
maintained. It is specific for gripping workpieces with varying sizes and shaped in a vacuum system.
How to order | |||
ZVR 05 -G1M ① ② ③ | |||
① Series | ② Over flow port diameter | ③ Suction cup connection thread | |
ZVR | 04 - Φ0.4mm 05 - Φ0.5mm 06 - Φ0.6mm 10 - Φ1.0mm 12 - Φ1.2mm | M5F - M5 Female thread G1F - G1/8 Female thread G2F - G1/4 Female thread G3F - G3/8 Female thread G4F - G1/2 Female thread | M5M - M5 Male thread G1M - G1/8 Male thread G2M - G1/4 Male thread G3M - G3/8 Male thread G4M - G1/2 Male thread |
Selection | ||||||||||
Model/ Connection thread | M5 | G1 | G2 | G3 | G4 | |||||
M | F | M | F | M | F | M | F | M | F | |
ZVR04 | ● | ● | - | - | - | - | - | - | - | - |
ZVR05 | - | - | ● | ● | - | - | - | - | - | - |
ZVR06 | - | - | - | - | ● | ● | - | - | - | - |
ZVR10 | - | - | - | - | - | - | ● | ● | - | - |
ZVR12 | - | - | - | - | - | - | - | - | ● | ● |
Technical parameters | |||
Model | Suction flow at -30kPa(NL/min) | Suction flow at -60kPa(NL/min) | Max.blow flow (NL/min) |
ZVR04-M5 | 1.2 | 1.3 | 80 |
ZVR05-G1 | 2.3 | 2.5 | 310 |
ZVR06-G2 | 2.9 | 3.4 | 340 |
ZVR10-G3 | 7.3 | 8 | 590 |
ZVR12-G4 | 8.1 | 9 | 790 |

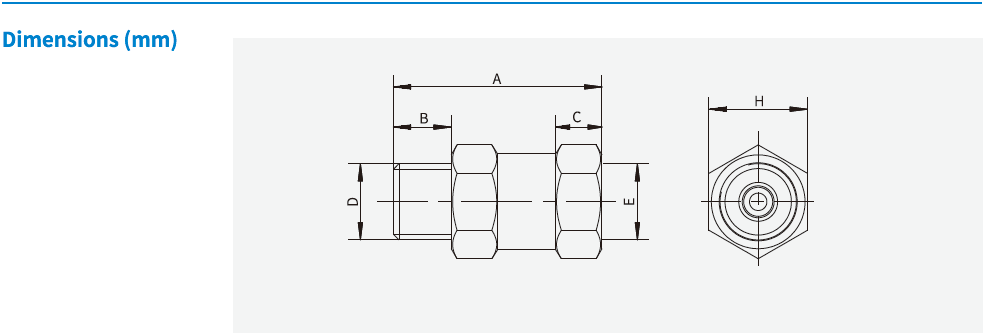

Model/ Size | A | B | C | D | E | H |
ZVR04-M5 | 20 | 4.5 | 4.5 | M5 | M5 | 8 |
ZVR05-G1 | 28 | 8 | 8 | G1/8 | G1/8 | 14 |
ZVR06-G2 | 36 | 10 | 11 | G1/4 | G1/4 | 17 |
ZVR10-G3 | 39 | 10 | 12 | G3/8 | G3/8 | 22 |
ZVR12-G4 | 41 | 12 | 14 | G1/2 | G1/2 | 27 |
