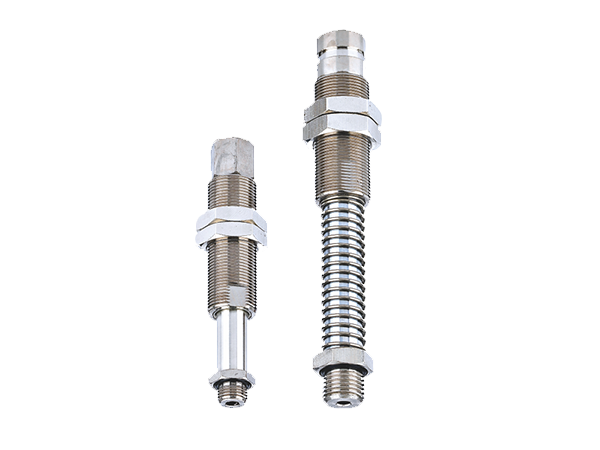

Features
◇ Corrosive resistance and wear resistance, smoothly operating.
◇ Built-in oil free bushing has good wear resistance, which enhances lifetime.
◇ Built-in and external spring, 2 types for option.
◇ G1/4 and G3/8 light weight design reduces the load on the robot.
Applications
◇ Various connection threads are available, suitable for all kinds of applications such as packaging and handling of metal plate, etc.
| How to order | |||||
| PSPT - I 10 LM5 G1M - M16 ① ② ③ ④ ⑤ ⑥ | |||||
| ① Series | ② Buffer style | ③ Buffer stroke | ④ Vacuum port connection | ⑤ Suction cup connection | ⑥ Mounting thread |
| PSPT | I - Built-in spring E - Eternal spring | 10 20 30 50 75 90 | Nil - Vertical rotating R - Vertical non-rotating LM5 -Lateral rotating M5 | M8M - M8 Male thread G1M - G1/8 Male thread G2M - G1/4 Male thread G3M - G3/8 Male thread G1F - G1/8 Female thread G2F - G1/4 Female thread | M14 - M14×1 M16 - M16×1 M18 - M18×1 |
| Selection | ||||||||||||
| Model | Buffer style | Buffer stroke(mm) | Connection thread | Mounting thread | ||||||||
| I | E | 10 | 20 | 30 | 50 | 75 | 90 | M14 | M16 | M18 | ||
| PSPT | ● | - | ● | ● | ● | ● | - | - | M8M | ● | - | - |
| ● | - | ● | ● | ● | ● | - | - | G1M、LM5G1M、G1F | - | ● | - | |
| ● | - | ● | ● | ● | ● | - | - | G2M、RG2M、G2F | - | - | ● | |
| - | ● | ● | ● | ● | ● | - | - | G3M、RG3M | - | - | ● | |
| ● | - | - | - | - | - | ● | ● | G2M、G3M | - | - | ● | |
◇Note: "●"- standard, in stock. "-"-unavailable.
