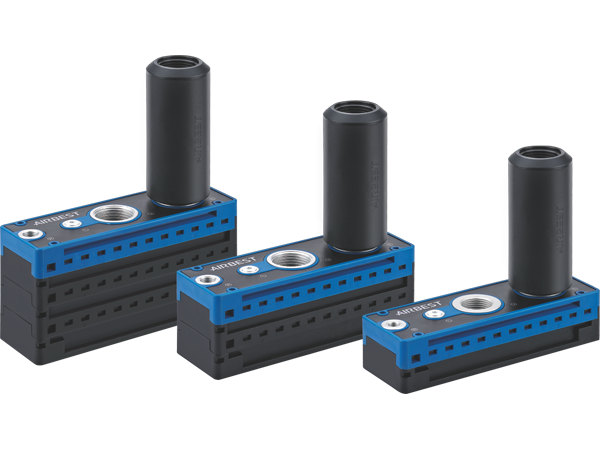

Features
◇ Integrated vacuum cartridge, increase energy consumption ratio greatly
◇ H type max vacuum level is -95Kpa，L type max vacuum level is -75Kpa
◇ Different connections are optional for different vacuum flow.
◇ Integrated 1-6 pcs cartridges, up to three layers can be added, in order to meet different vacuum
flow requirement.

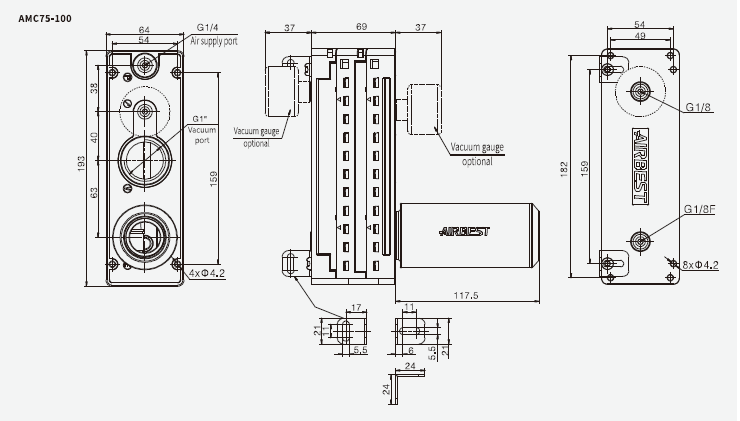

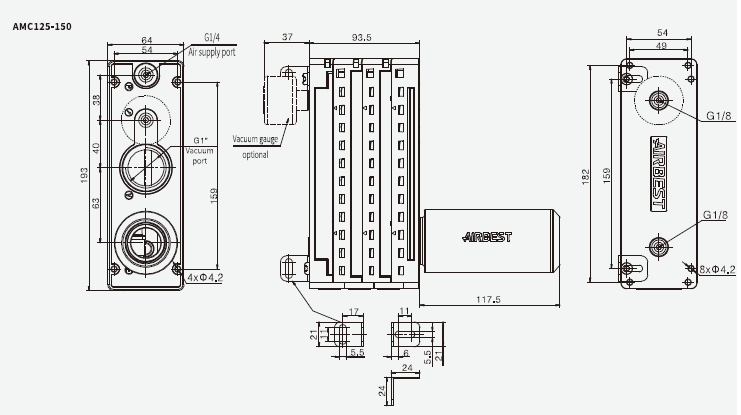

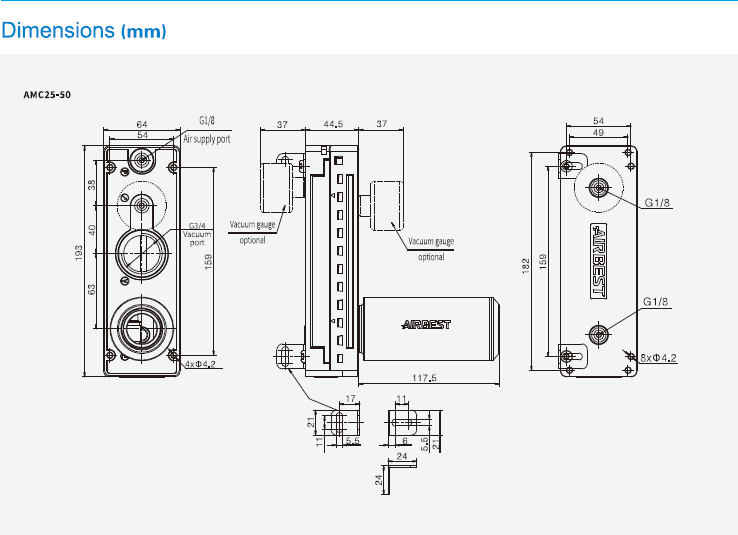

| How to order | |||
| AMC 25 L - AA - F V R ES ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ | |||
| ① Series | ② Specification | ③ Performance | ④ Connection plate |
| AMC | 25 100 50 125 75 150 | H - High vacuum level (-95kPa) L - Large vacuum flow (-75kPa) | AA DB 08B 10C BA CC 10A 12C CA 08A 10B (Refer to table 1) |
| ⑤ Seal Material | ⑥ Vacuum switch | ⑦ Vacuum gauge | ⑧ Control device |
Nil - Standard, NBR F - Flourine rubber | Nil - Standard, without non-return valve V - With non-return valve | Nil - Standard, without vacuum gauge R - With vacuum gauge ZPMR | Nil - Standard, without control device PD - Electric control air supply PQ - Pneumatic control air supply VD - Electric control vacuum breakingQ - Pneumatic control vacuum breaking PVD - Electric control (air supply+ vacuum breaking)combination PVQ - Pneumatic control (air supply+vacuum breaking)combination ES - Energy saving system |
| Selelction | ||||
| Connection plate | Air supply port | Vacuum port | Exhaust port | Applicable vacuum pump |
AA | G1/8 | G3/4 | G1" | AMC25,50 |
BA | NPSF1/8 | G3/4 | G1" | |
CA | G1/4 | G3/4 | G1" | AMC25,50,75,100 |
DB | NPT1/4 | NPT3/4 | G1" | |
CC | G1/4 | G1" | G1" | AMC25,50,75,100,125,150 |
08A | φ8 | G3/4 | G1" | AMC25,50,75,100 |
08B | φ8 | NPT3/4 | G1" | |
10A | φ10 | G3/4 | G1" | |
10B | φ10 | NPT3/4 | G1" | |
10C | φ10 | G1" | G1" | |
| 12C | φ12 | G1" | G1" | AMC25,50,75,100,125,150 |
| Technical parameters | ||||||||||
| Model | Air supply pressure(bar) | Working temperature range (℃) | Max. vacuum level (-kPa) | Max. Vacuum flow (NL/min) | Max air consumption (NL/min) | Weight (g) | Noise level dB(A) | Vacuum chamber volume(cm³) | Recommended hose dia. (mm) | |
| Air supply (P) | Vacuum (V) | |||||||||
AMC25L | 6.0 | -10~80 | 75 | 360 | 130 | 430 | 63-68 | 140 | 8 | 25 |
| AMC50L | 6.0 | -10~80 | 75 | 710 | 260 | 435 | 63-68 | 140 | 8 | 25 |
AMC75L | 6.0 | -10~80 | 75 | 1050 | 390 | 625 | 63-68 | 245 | 10 | 32 |
AMC100L | 6.0 | -10~80 | 75 | 1410 | 520 | 630 | 63-68 | 245 | 10 | 32 |
AMC125L | 6.0 | -10~80 | 75 | 1500 | 650 | 825 | 63-68 | 352 | 12 | 32 |
AMC150L | 6.0 | -10~80 | 75 | 1690 | 780 | 830 | 63-68 | 352 | 12 | 32 |
AMC25H | 4.5 | -10~80 | 95 | 345 | 135 | 430 | 63-68 | 140 | 8 | 25 |
AMC50H | 4.5 | -10~80 | 95 | 700 | 270 | 435 | 63-68 | 140 | 8 | 25 |
AMC75H | 4.5 | -10~80 | 95 | 980 | 405 | 625 | 63-68 | 245 | 10 | 32 |
AMC100H | 4.5 | -10~80 | 95 | 1380 | 540 | 630 | 63-68 | 245 | 10 | 32 |
AMC125H | 4.5 | -10~80 | 95 | 1480 | 675 | 825 | 63-68 | 352 | 12 | 32 |
| AMC150H | 4.5 | -10~80 | 95 | 1650 | 81 | 830 | 63-68 | 352 | 12 | 32 |
◇Note: Max air supply pressure 7.0 bar, Noise level is tested in 0.5m far away from vacuum pump

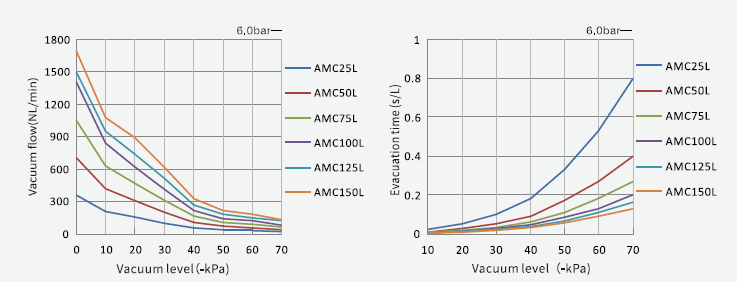

| Vacuum flow (NL/min) at different vacuum levels (-kPa) | |||||||||||
| Model | Air supply pressure(bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | Max. vacuum level (-kPa) |
AMC25L | 6.0 | 130 | 360 | 210 | 156 | 102 | 54 | 36 | 30 | 21 | 75 |
AMC50L | 6.0 | 260 | 710 | 420 | 312 | 204 | 108 | 72 | 60 | 42 | 75 |
AMC75L | 6.0 | 390 | 1050 | 630 | 468 | 306 | 162 | 108 | 90 | 66 | 75 |
AMC100L | 6.0 | 520 | 1410 | 840 | 624 | 408 | 216 | 144 | 120 | 84 | 75 |
AMC125L | 6.0 | 650 | 1500 | 948 | 744 | 510 | 270 | 180 | 150 | 126 | 75 |
| AMC150L | 6.0 | 780 | 1690 | 1074 | 888 | 612 | 324 | 216 | 180 | 132 | 75 |
| Evacuation time (s/L) to reach different vacuum levels (-kPa) | ||||||||||
| Model | Air supply pressure(bar) | Air consumption (NL/min) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | Max. vacuum level (-kPa) |
AMC25L | 6.0 | 130 | 0.02 | 0.05 | 0.1 | 0.18 | 0.33 | 0.53 | 0.80 | 75 |
AMC50L | 6.0 | 260 | 0.01 | 0.025 | 0.05 | 0.09 | 0.17 | 0.27 | 0.40 | 75 |
AMC75L | 6.0 | 390 | 0.007 | 0.17 | 0.033 | 0.06 | 0.11 | 0.18 | 0.27 | 75 |
AMC100L | 6.0 | 520 | 0.005 | 0.13 | 0.025 | 0.045 | 0.083 | 0.13 | 0.20 | 75 |
AMC125L | 6.0 | 650 | 0.005 | 0.12 | 0.022 | 0.036 | 0.066 | 0.11 | 0.16 | 75 |
| AMC150L | 6.0 | 780 | 0.004 | 0.01 | 0.018 | 0.03 | 0.055 | 0.09 | 0.13 | 75 |

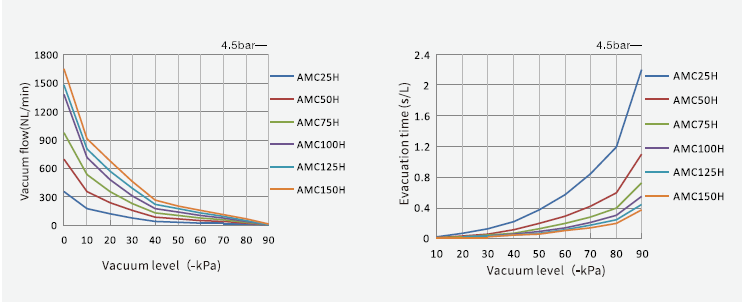

| Vacuum flow (NL/min) at different vacuum levels (-kPa) | |||||||||||||
| Model | Air supply pressure(bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level (-kPa) |
AMC25H | 5.0 | 130 | 354 | 180 | 120 | 78 | 43.8 | 34.8 | 25.8 | 19.2 | 10.8 | 1.8 | 95 |
AMC50H | 5.0 | 270 | 700 | 360 | 240 | 156 | 87.6 | 69.6 | 51.6 | 38.4 | 21.6 | 3.6 | 95 |
AMC75H | 5.0 | 405 | 980 | 540 | 360 | 234 | 131.4 | 104.4 | 77.4 | 57.6 | 32.4 | 5.4 | 95 |
AMC100H | 5.0 | 540 | 1380 | 720 | 480 | 312 | 175.2 | 139.2 | 103.2 | 76.8 | 43.2 | 7.2 | 95 |
AMC125H | 5.0 | 675 | 1480 | 810 | 570 | 390 | 219 | 174 | 129 | 96 | 54 | 9 | 95 |
| AMC150H | 5.0 | 810 | 1650 | 918 | 684 | 468 | 262.8 | 206.4 | 154.8 | 115.2 | 64.8 | 10.8 | 95 |
| Evacuation time (s/L) to reach different vacuum levels (-kPa) | ||||||||||||
| Model | Air supply pressure(bar) | Air consumption (NL/min) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Max. vacuum level (-kPa) |
AMC25H | 4.5 | 130 | 0.022 | 0.062 | 0.12 | 0.22 | 0.37 | 0.57 | 19.2 | 10.8 | 1.8 | 95 |
AMC50H | 4.5 | 270 | 0.011 | 0.031 | 0.06 | 0.11 | 0.19 | 0.29 | 38.4 | 21.6 | 3.6 | 95 |
AMC75H | 4.5 | 405 | 0.007 | 0.021 | 0.04 | 0.07 | 0.12 | 0.19 | 57.6 | 32.4 | 5.4 | 95 |
AMC100H | 4.5 | 540 | 0.006 | 0.016 | 0.03 | 0.055 | 0.09 | 0.14 | 76.8 | 43.2 | 7.2 | 95 |
AMC125H | 4.5 | 675 | 0.005 | 0.014 | 0.026 | 0.044 | 0.07 | 0.11 | 96 | 54 | 9 | 95 |
| AMC150H | 4.5 | 810 | 0.005 | 0.012 | 0.022 | 0.04 | 0.06 | 0.10 | 115.2 | 64.8 | 10.8 | 95 |
